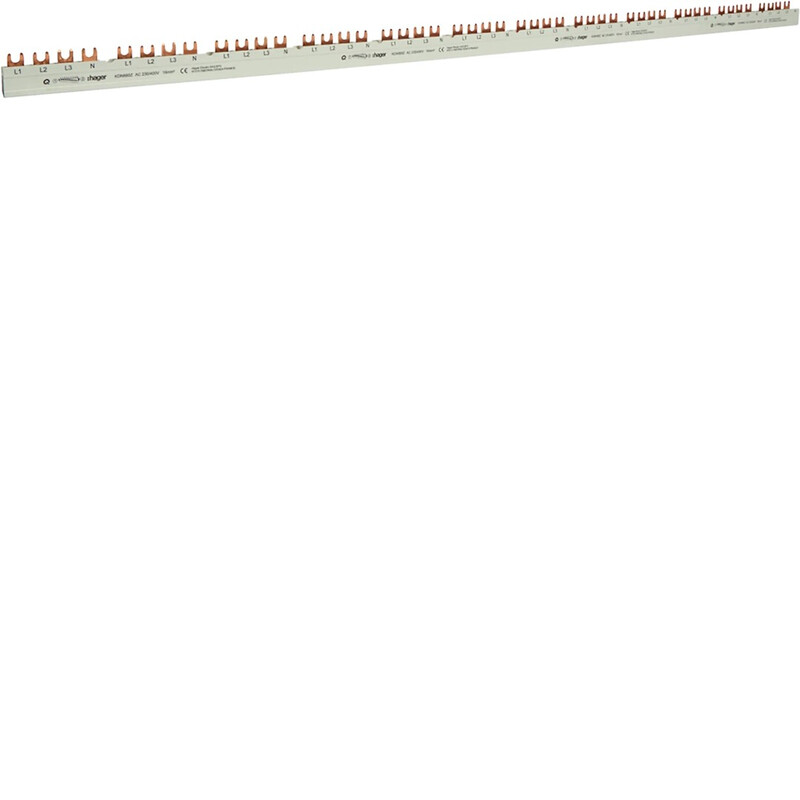

BUSBAR KDN680Z 4P 80A L1+L2+L3+N+H 1M
Product code
3246537
4-pole busbar 80A/16mm2, for safely and quickly connecting up to 12 units of 4-pole 4-module-wide circuit breakers, residual current devices, and residual current circuit breakers equipped with 0.5 module auxiliary modules. Busbar length 1 meter, free terminals of the busbar can be protected against contact using product KZ059, end cap KZN024 for protecting the ends of the busbar against contact. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase busbar (EC000215)
Number of phases3
Number of poles4
Suitable for number of devices12
Cross section16 mm²
Length1032 mm
Rated permanent current Iu80 A
Type of electric connectionFork
Insulatedyes
Rated surge voltage4 kV
Max. rated operation voltage Ue400 V
Suitable for devices with N-conductoryes
Suitable for devices with auxiliary switchyes
ColourGrey
Product codes
SAPCLH984
STK3246537
PLC3246537
GTIN/EAN3250613741525
Manufacturer part numberKDN680Z
Vendor material number3246537
Basic information
Package measurements (L x W x H)33 x 1035 x 26 mm
Package volume0.888 l
Package weight0.842 kg
Base uniteach
Package units1 / 10 / 120
Package contents–
UNSPSC39121117
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0259
GWP, uniteach
Source for GWP dataEPD
