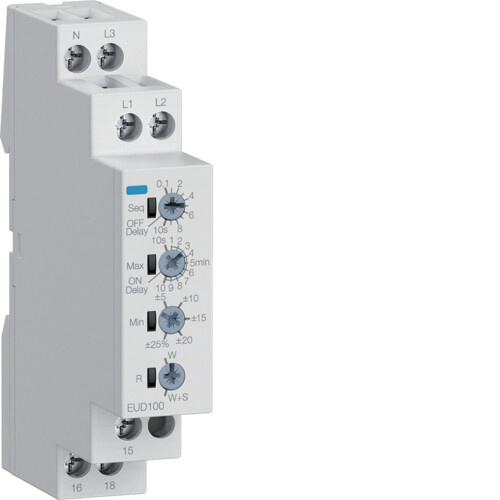

VOLTAGE MONITORING RELAY EUD100 OV/UV/SEQ 1/3PH 1M
Product code
2707348

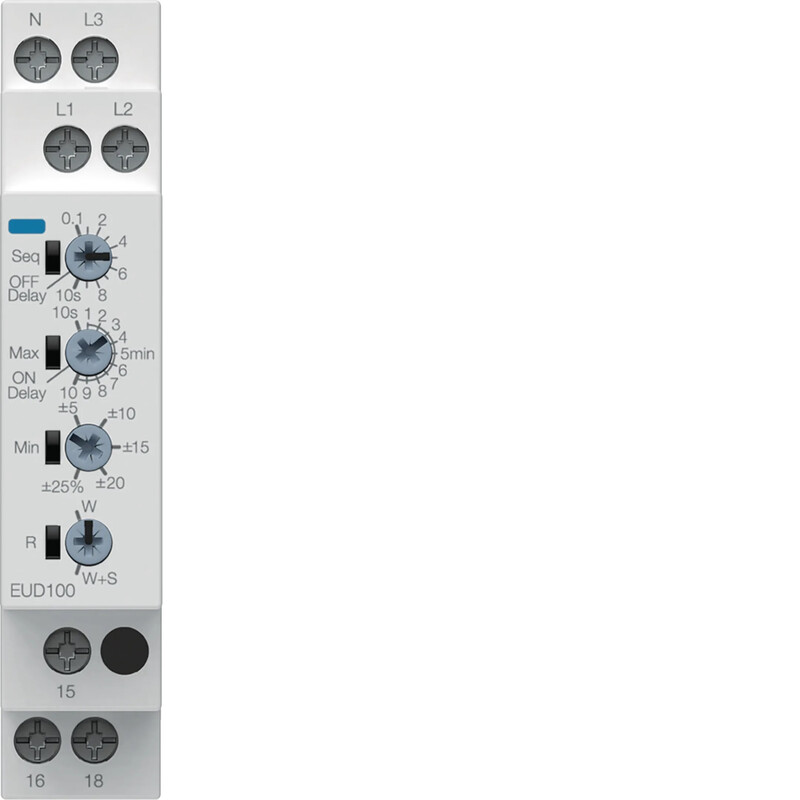

The voltage monitoring relay is used for monitoring single-phase and three-phase networks. The relay is equipped with settings for the monitoring range, trip delay, and switching delay. In addition to voltage monitoring, the relay monitors phase sequence and phase faults. The settings for functions and limit values are made using four potentiometers on the relay's front panel. Indicator lights show the relay's status. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Under voltage monitoring relay for distribution board (EC001667)
Rated voltage400 V
Rated frequency50-60 Hz
Indicated measuring range3N, 400/230V
Max. switching power1250 VA
Release delay10000 ms
Max. electrical switching cycles6 c/min
Voltage typeAC
Mounting methodDIN rail
Width in number of modular spacings1

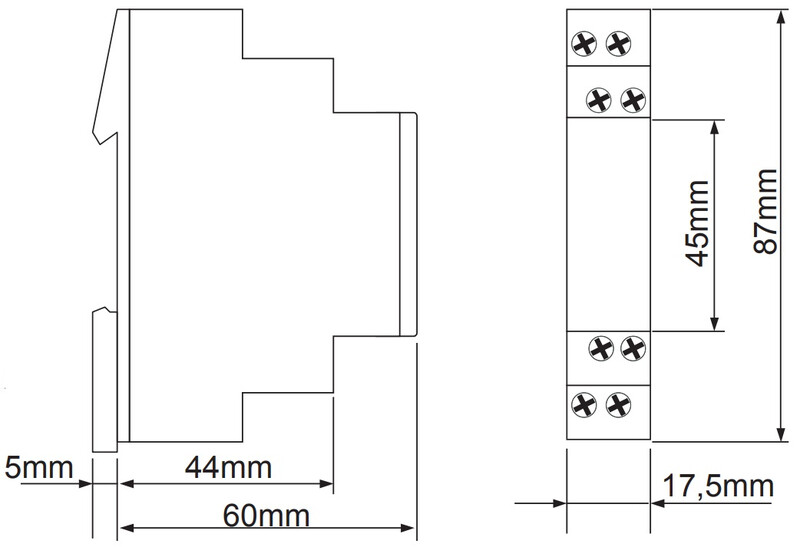

Built-in height64 mm
Degree of protection (IP)IP20
Product codes
SAPCZA932
STK2707348
PLC2707348
GTIN/EAN3250615600530
Manufacturer part numberEUD100
Vendor material number2707348
Basic information
Package measurements (L x W x H)95 x 80 x 22 mm
Package volume0.167 l
Package weight0.09 kg
Base uniteach
Package units1 / 100 / 2400
Package contents–
UNSPSC39122317
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.008
GWP, uniteach
Source for GWP dataEPD
