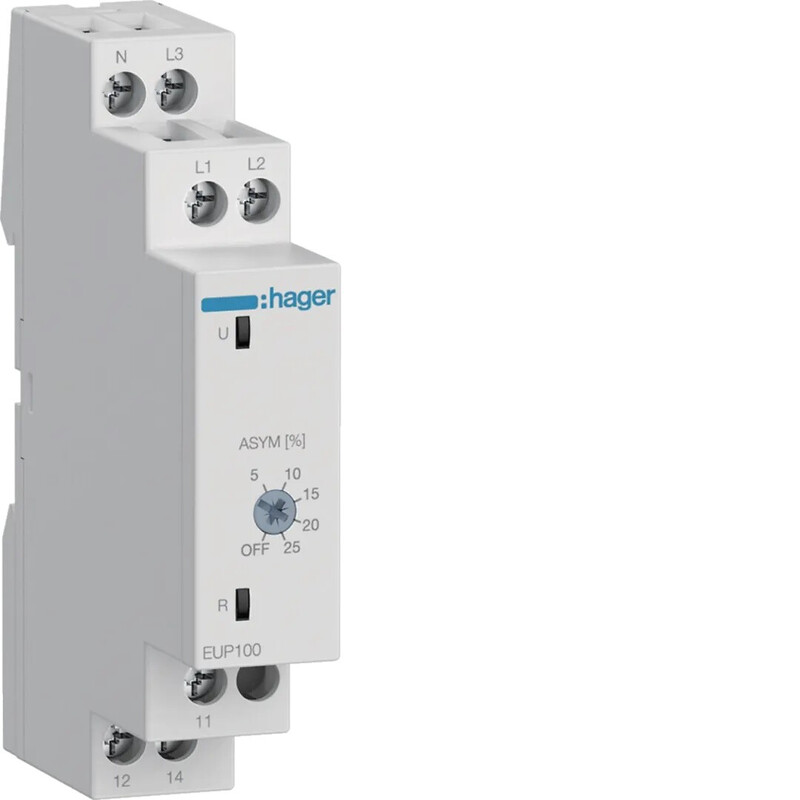

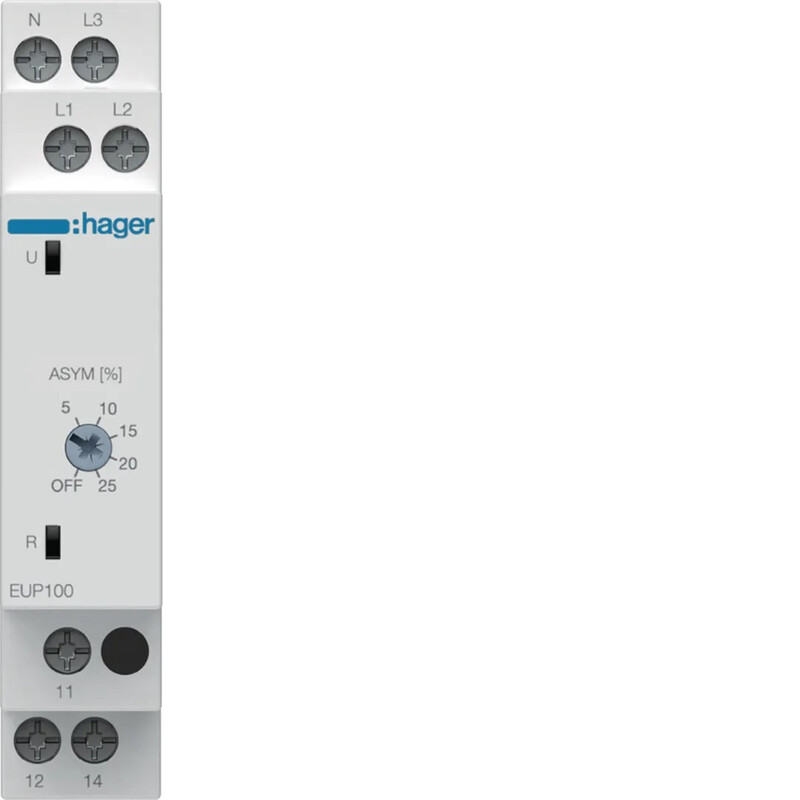

VOLTAGE MONITORING RELAY EUP100 ASYM. 1CO 1M
Product code
2707351
The monitoring relay is suitable for monitoring symmetry between the phases of a three-phase network at 230/400 VAC. The asymmetry threshold can be adjusted via a potentiometer on the front panel of the device within the range of 5 to 20%. The relay status is indicated by two indicator lights on the front of the product. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Phase monitoring relay (EC001441)
Type of electric connectionScrew connection
With detachable clampsno
Phase sequence monitoringyes
Phase failure detectionyes
Function under voltage detectionno
Function overvoltage detectionno
Phase imbalance monitoringyes
Voltage measuring range161-520 V
Min. adjustable delay-on energization time0 s
Min. adjustable off-delay time0.1 s
Max. permitted off-delay time0.1 s
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact1

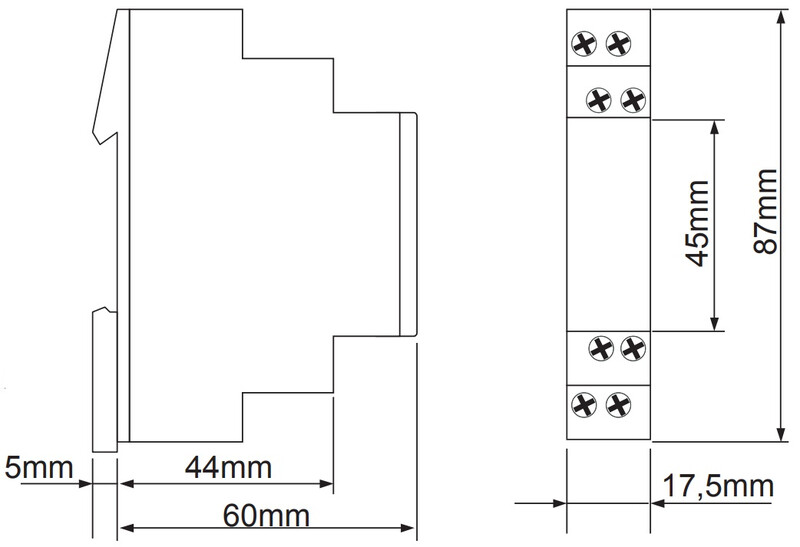

Width17.5 mm
Product codes
SAPCZA935
STK2707351
PLC2707351
GTIN/EAN3250615600561
Manufacturer part numberEUP100
Vendor material number2707351
Basic information
Package measurements (L x W x H)95 x 80 x 22 mm
Package volume0.167 l
Package weight0.09 kg
Base uniteach
Package units1 / 100 / 2400
Package contents–
UNSPSC39122317
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.008
GWP, uniteach
Source for GWP dataEPD
