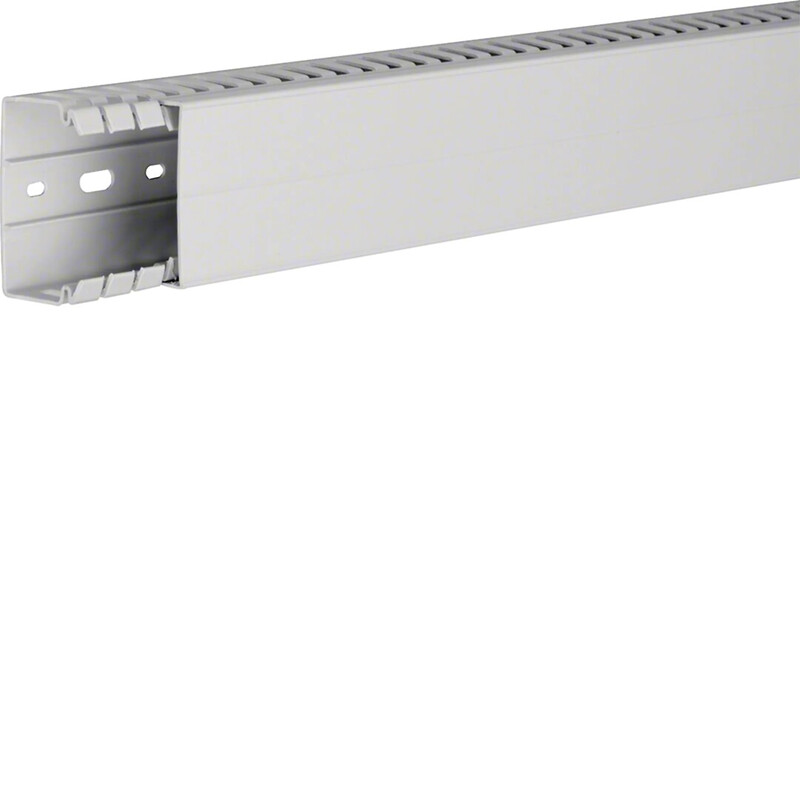

WIRE RACE-WAY HA7 40X60X2000 PC/ABS LGRAY
Product code
1417765
slottet panel trunking HA7 40x60, lg
Conduit HA7 40 x 60 x 2000 mm with bottom holes. Material: halogen-free PC/ABS plastic with improved fire safety, color light gray RAL7035. Temperature resistance -25 °C / +90 °C. The channel cover is easy to attach and remains securely fastened even when the channel is fully loaded. Side openings for conductors up to 6 mm² without breaking the ribs. The channel can be equipped with separately orderable cable holders.
Features- dimensions: 40 x 60 x 2000 mm
- material: halogen-free PC/ABS plastic
- color: light gray RAL7035
- temperature resistance: -25 °C / +90 °C
Product details
Technical specifications
Product class (ETIM)Slotted cable trunking system (EC000012)
MaterialAcrylonitrile butadiene styrene (ABS)
Height40 mm
Width60 mm
Length2000 mm
Diameter0 mm
Distance of slots6.5 mm
Slit width6 mm
Type of side wallSlotted
Halogen freeyes
Self-extinguishingyes
Flexibleno
Usable cross section1568 mm²
Type of fasteningBottom perforation
With coveryes
ColourGrey
Product codes
SAPAIS677
STK1417765
PLC1417765
GTIN/EAN4012740199155
Manufacturer part numberHA740060
Vendor material number1417765
Basic information
Package measurements (L x W x H)1000 x 60 x 40 mm
Package volume2.4 l
Package weight0.382 kg
Base unitMeter
Package units2 / 40 / 720
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
