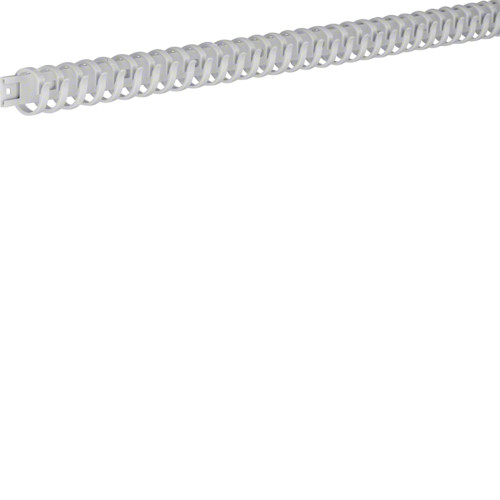

WIRING TRUNKING VKFLEX 21X23X500 MM HALOGEN FREE
Product code
1417743
L 2222 Grey VK Flex
Flexible VK-flex conduit with top-entry slot and secure mounting tab for equipment and device mounting and as cable holder for furniture installation
- Easy to add cables
- Particularly suitable for rapid wiring of doors
- Easy to install with screws or adhesive tabs
- Available in 4 sizes and 2 lengths with male and female connectors for channel connections
- Temperature resistance -25 °C ... 90 °C
- UL listed File No. 48414
- CS listed File No. 22009
- Self-extinguishing according to UL94 V0
- Suitable for flat surfaces, excluding polyethylene- and polypropylene-based and silicone-containing paint surfaces This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Slotted cable trunking system (EC000012)
MaterialOther
Height0 mm
Width0 mm
Length500 mm
Diameter24 mm
Distance of slots4.5 mm
Slit width8 mm
Type of side wallSlotted
Halogen freeyes
Self-extinguishingyes
Flexibleyes
Usable cross section154 mm²
Type of fasteningSelf-adhesive and bottom perforation
With coverno
ColourGrey
Product codes
SAPADJ074
STK1417743
PLC1417743
GTIN/EAN4012740104401
Manufacturer part numberL2222
Vendor material number1417743
Basic information
Package measurements (L x W x H)500 x 25 x 25 mm
Package volume0.313 l
Package weight0.046 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
