SHOWERSYSTEM HANSGROHE 26947000 RAINDAN E360 AIR NORD
Product code
6350937

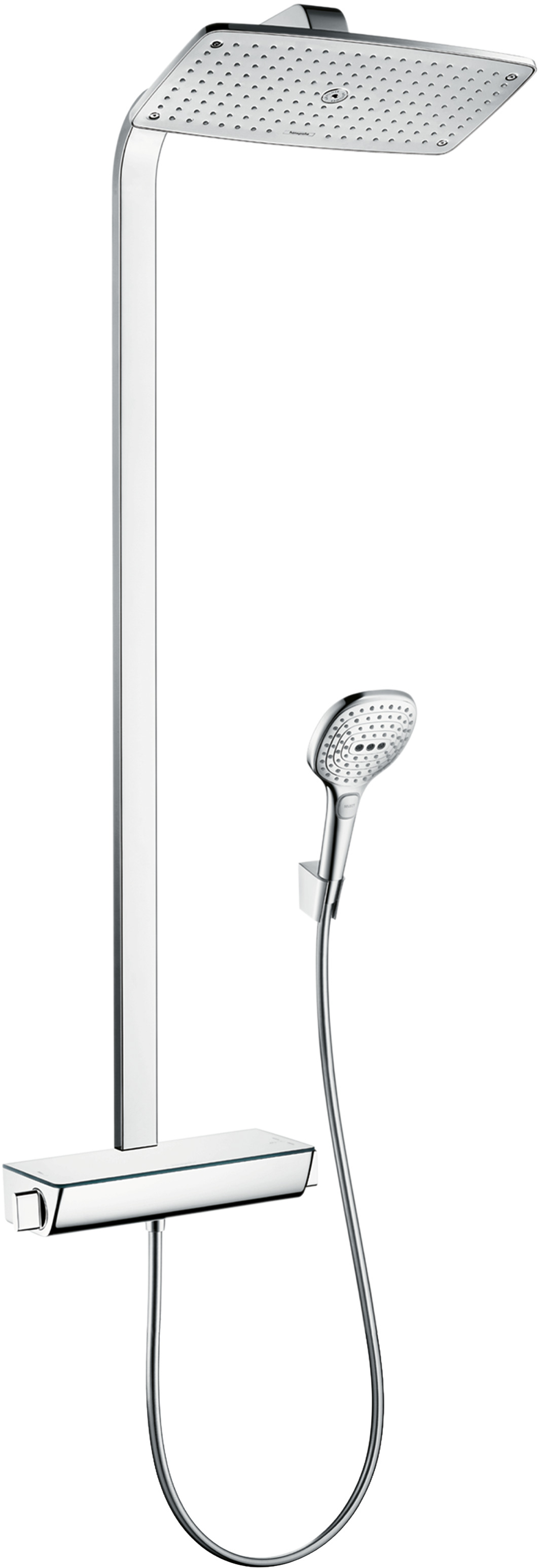

The Hansgrohe Raindance E 360 rain shower set includes an overhead shower, hand shower, thermostatic shower valve, shower hose, and hand shower holder.
Features- Overhead shower Raindance E 360 Air
- Shower size: 360 x 190 mm
- Shower modes: RainAir
- Ball joint: overhead shower angle adjustable
- Shower pipe length: 380 mm
- Storage level: storage level made of safety glass
- Storage level color: chrome or white
- Flow rate: RainAir (3 bar): 17 l/min
- Thermostat Ecostat Select
- Insulated water channels
- Safety stop at 40°C
- Adjustable hot water limiter
- Installation method: wall mounting
- Connection size DN15
- Connection thread G ˝
- Wall mounting 150 mm ± 12 mm
- Offset connectors without shut-off (the faucet is not suitable for shut-off offset connectors or surface mounting connectors); adapter set # 02026000 must be used when installing onto existing G ľ connections (= non-shut-off offset connectors G ľ x G ľ)

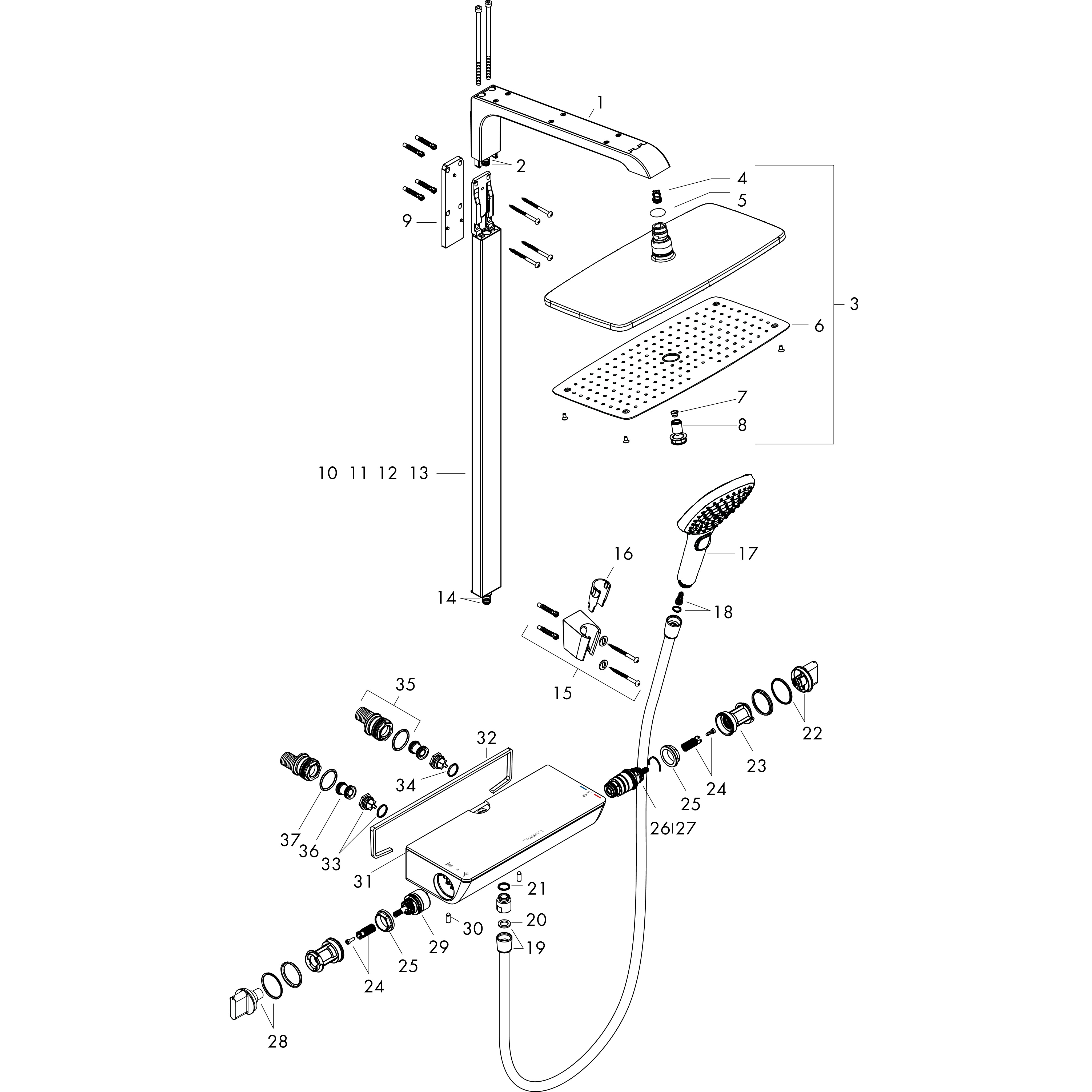

- Vertical pipes of various lengths available as spare parts
- 0.2 l/s at 175 kPa (overhead shower); 0.2 l/s at 200 kPa (hand shower)
- Noise class: I
- STF type approval
Product details
Technical specifications
Product class (ETIM)Shower column/panel (EC011613)
MountingWall
Built-inno
Adjustable heightno
Type of temperature controlThermostatic
Self-closingno
With head showeryes
With hand showeryes
Hand shower height-adjustableno
With side showersno
With shelfyes
With lightingno
Basic colourChrome
Accent colourChrome
Height1206 mm
Width360 mm
Product codes
SAPCLN023
HPAC6350937
PLC6350937
GTIN/EAN4059625295571
Manufacturer part number26947000
Vendor material number26947000
Basic information
Package measurements (L x W x H)1140 x 315 x 150 mm
Package volume53.865 l
Package weight11 kg
Base uniteach
Package units1 / 10 / 10
Package contents–
UNSPSC30181702
BrandHANSGROHE
VendorHANSGROHE AG
Documents (9)
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Features
Flow rate at 3 bar (l/min)14.5
Spare parts availability (years)15
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)26.1516
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
