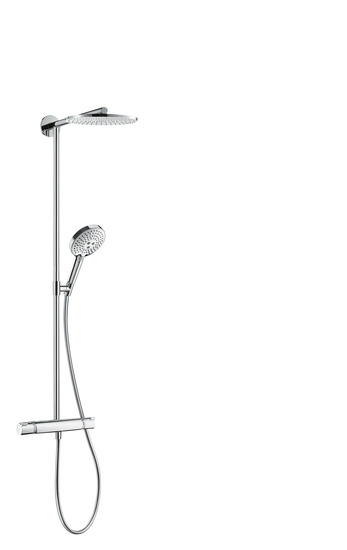

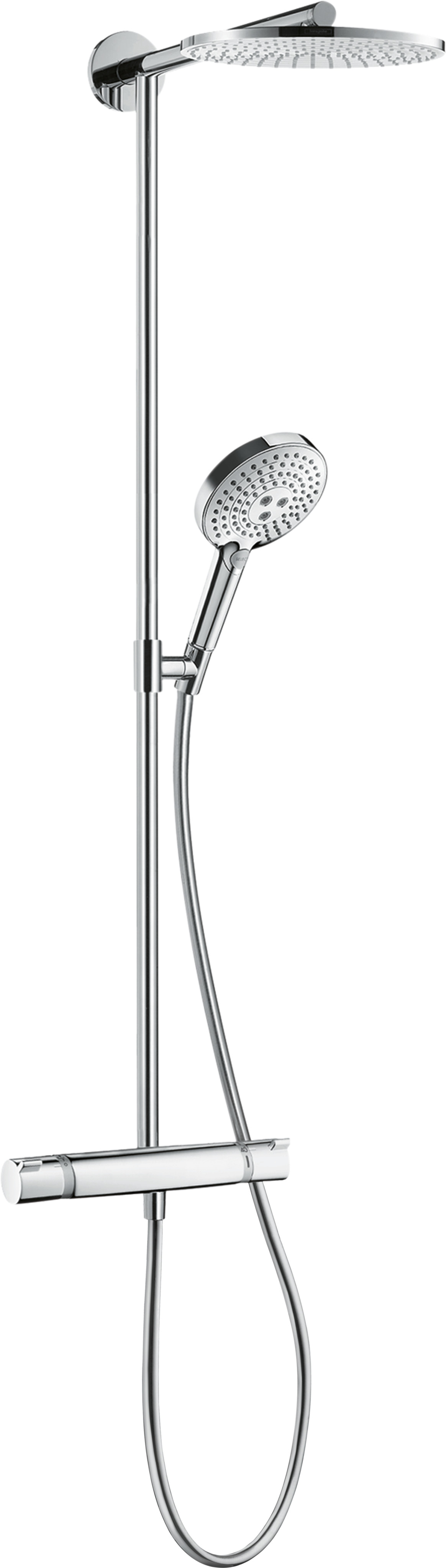

SHOWERSYSTEM HANSGROHE 27847000 RAINDAN S240 AIR NORD
Product code
6350941
- includes: overhead shower, hand shower, thermostatic shower valve, shower hose, slide
- overhead shower Raindance S 240 Air
- shower size: 240 mm
- shower modes: RainAir
- shower arm length: 460 mm
- height-adjustable hand shower holder
- maximum flow rate at 3 bar: 17 l/min
- flow rate: RainAir (3 bar): 17 l/min
- thermostat Ecostat Comfort
- safety stop at 40°C
- adjustable hot water limiter
- installation method: wall mounting
- connection size DN15
- connection thread G 3
- wall mounting 150 mm ± 12 mm
- does not include eccentric connectors or cover caps
- 0.2 l/s at 175 kPa (overhead shower); 0.2 l/s at 160 kPa (hand shower)
- Note! If compression fittings are used during installation, the elevation piece for the Showerpipe upper mounting #98681000 must be ordered separately
- thermostat STF-type approval EUFI29-20001674-TH4
Product details
Technical specifications
Product class (ETIM)Shower column/panel (EC011613)
With head showeryes
With hand showeryes
With side showersno
Basic colourChrome
Height1280 mm
Width120 mm
Product codes
SAPCJT478
HPAC6350941
PLC6350941
GTIN/EAN4059625295113
Manufacturer part number27847000
Vendor material number27847000
Basic information
Package measurements (L x W x H)1280 x 360 x 120 mm
Package volume55.296 l
Package weight6 kg
Base uniteach
Package units1 / 10 / 14
Package contents–
UNSPSC30181702
BrandHANSGROHE
VendorHANSGROHE AG
Documents (6)
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Features
Flow rate at 3 bar (l/min)17
Spare parts availability (years)15
Type ApprovalYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)14.2645
GWP, uniteach
Source for GWP dataEPD
