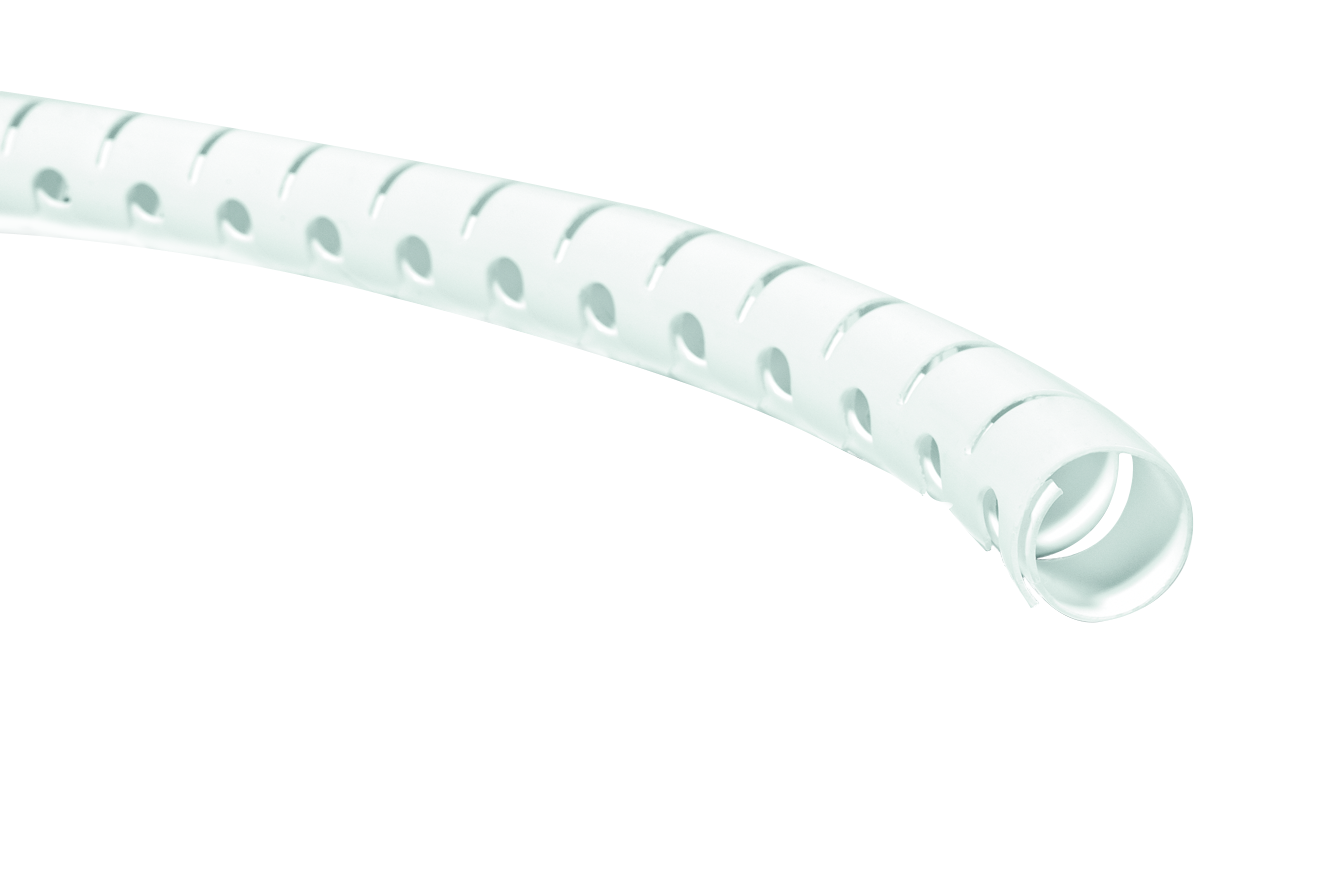

CABLE SPIRAL BINDING HWPP20WEX25MT WHITE 25M

Product code
1371670
Helawrap is the ideal solution for bundling and protecting cables in industrial as well as in home or office environments. Due to its special profile and handy applicator tool, Helawrap can be applied rapidly and effortlessly. The unique design allows the user to branch off cable at any point along the cover with ease. Helawrap can also be removed and re-applied as often as required.Helawrap is available in several colours, a large range of sizes covering most standard applications and in two durable materials. A handy applicator tool is always included. Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.

Product details

Technical specifications

ModelSpiral hose
Nominal diameter20 mm
MaterialPlastic
Material qualityPolypropylene (PP)
ColourWhite
Transparentfalse
Operating temperature-60 ... 110 °C
Operating temperature, short-run140 °C
Fire resistant propertiesAccording to UL94 HB
Halogen freetrue
UV resistantfalse
Wall thickness0.95 mm
Filament width16 mm
Bundle diameter18 ... 21 mm

Product codes

SAPACV301
PLC1371670
STK1371670
GTIN/EAN5022660197000
Manufacturer part number161-64304
Vendor material number1371670

Basic information

Package measurements (L x W x H)385 x 385 x 175 mm
Package volume25.939 l
Package weight1.78 kg
Base uniteach
Package units1 / 18 / 36
Package contents25 Meter
UNSPSC39121705
BrandHELLERMANNTYTON
VendorHELLERMANN TYTON
