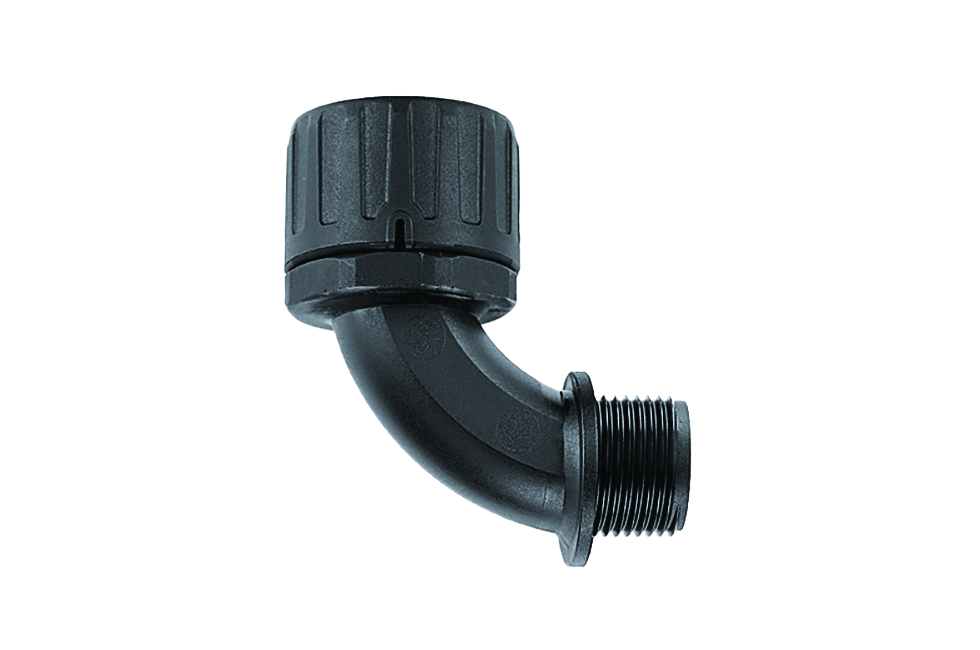

FITTING HG28-90-M25 90ELBOW M25 BK
Product code
1116171
HG-90 - 90° protective hose coupling, fixed external thread, IP66
- Compact design
- Easy and quick to install
- High tensile strength of protective hose and coupling
- Resistant to most oils and solvents
- Halogen-free, contains no sulfur or phosphorus
- M-thread coupling includes counter-nut
- Installation with counter-nut meets IP66 enclosure rating
- Compatible with HG-series protective hoses
Product details
Technical specifications
Product class (ETIM)Screw connection for corrugated plastic hose (EC001176)
Nominal diameter28 mm
Nominal size in inchOther
Degree of protection (IP)IP66
Model90°-elbow
Revolving threadno
Construction typeExternal thread
Type of connectionSnap connection
Thread typeMetric
Thread connection sizeM25 x 1.5
Thread materialPolyamide (PA)
Thread length15 mm
Total length66 mm
Total height66 mm
MaterialPolyamide (PA)
Lowest inner diameter hose19 mm
Product codes
SAPAIN630
STK1116171
PLC1116171
GTIN/EAN4031026303956
Manufacturer part number166-22205
Vendor material number1116171
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.192 l
Package weight0.041 kg
Base uniteach
Package units10
Package contents–
UNSPSC40101852
BrandHELLERMANNTYTON
VendorHELLERMANN TYTON
