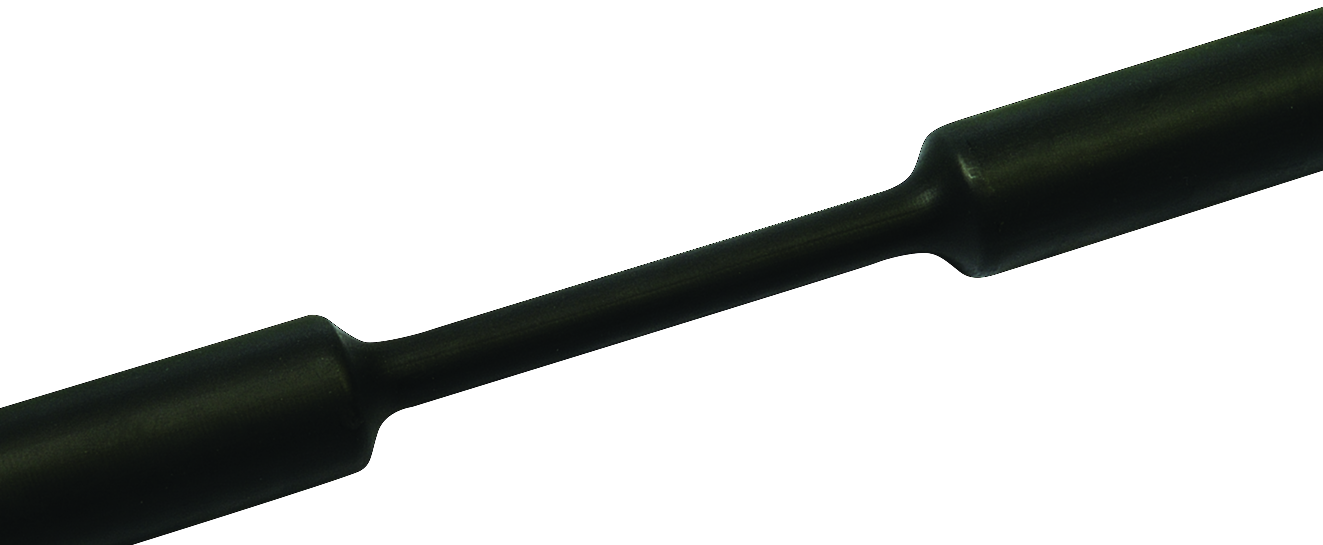

HEATSHRINK TUBING 3:1 TREDUX 12/4 BLACK 1M

Product code
5236210
Heat Shrinkable Tubing 3:1 PO-X 1 m Lengths Thin Wall 12/4 black
TREDUX is a thin wall, flexible tubing with a shrink ratio of 3:1 and is made from cross-linked polyolefin. Available in 1 m lengths, 9 sizes from 1.5 mm to 101.6 mm and colours black and yellow/green. All 1 m lengths are delivered in a display carton. TREDUX thin wall heat shrink tubing is used for general electrical insulation and mechanical protection of cables and wires.

Product details

Technical specifications

TypeHeat-shrink
ModelThin-walled
Shrink rate3:1
Inner diameter before heat-shrink12 mm
Inner diameter after heat-shrink4 mm
Nominal diameter inchOther
Nominal cross section0 mm²
Wall thickness after shrinking0.85 mm
Length1 m
Operating temperature-55 ... 135 °C
ColourBlack
MaterialCrosslinked polyolefin (XLPO)
Halogen freefalse
With inner gluefalse
Printabletrue

Product codes

SAPADR935
PLC5236210
STK5236210
GTIN/EAN4031026227719
Manufacturer part number319-01200
Vendor material number5236210

Basic information

Package measurements (L x W x H)1068 x 53 x 53 mm
Package volume3 l
Package weight0.13 kg
Base uniteach
Package units1 / 10 / 80
Package contents
UNSPSC39121718
BrandHELLERMANNTYTON
VendorHELLERMANN TYTON
