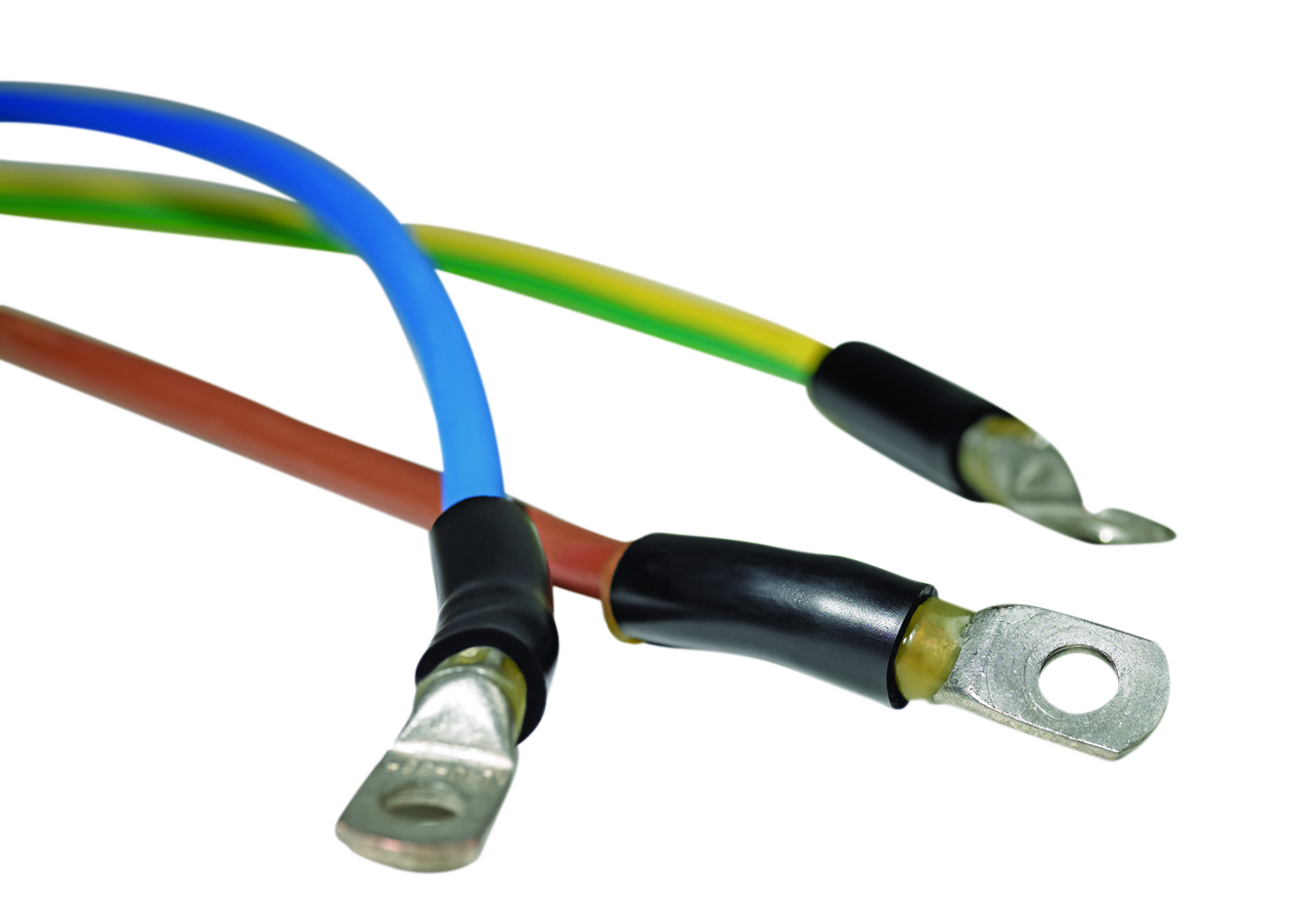

HEATSHRINK TUBING THICK HA47 33/8 WITH ADHESIVE 1M
Product code
5237826
Heat Shrinkable Tubing 3.5:1 Thick Wall Adhesive Lined length 1m 33/8 black
Adhesive-lined shrinkable tubing
Shrink ratio 3.5:1
Material: Polyolefin
Operating temperature: -55 °C...+110 °C
Shrink temperature: +120 °C
Dielectric strength: 15 kV/mm
Delivery length: 1.0 m
Color: Black
Application: Strong and weather-resistant construction suitable for outdoor use and as extensions for underground cables in low-voltage applications. Excellent mechanical durability. Good moisture protection and weather resistance. This product description is an automated translation of the original Finnish description.
Shrink ratio 3.5:1
Material: Polyolefin
Operating temperature: -55 °C...+110 °C
Shrink temperature: +120 °C
Dielectric strength: 15 kV/mm
Delivery length: 1.0 m
Color: Black
Application: Strong and weather-resistant construction suitable for outdoor use and as extensions for underground cables in low-voltage applications. Excellent mechanical durability. Good moisture protection and weather resistance. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Shrink tubing (EC000217)
TypeHeat-shrink
ModelThick-walled
Shrink rate4:1
Inner diameter before heat-shrink33 mm
Inner diameter after heat-shrink8 mm
Nominal diameter inchOther
Wall thickness after shrinking3.2 mm
Length1 m
Operating temperature-55-110 °C
ColourBlack
MaterialCrosslinked polyolefin (XLPO)
Halogen freeyes
With inner glueyes
Printableno
UL approvalno
Product codes
SAPADQ661
STK5237826
PLC5237826
GTIN/EAN4031026240381
Manufacturer part number321-20280
Vendor material number5237826
Basic information
Package measurements (L x W x H)1081 x 238 x 132 mm
Package volume33.961 l
Package weight0.329 kg
Base uniteach
Package units1 / 20 / 70
Package contents–
UNSPSC39121718
BrandHELLERMANNTYTON
VendorHELLERMANN TYTON
The country of origin stated by the supplierFinland
Environment and safety
Manufacturer
NameHellermannTyton aktiebolaget sivuliike Suomessa
Postal addressÄyritie 12B, 01510, Vantaa, Finland
