SHIP CABLE-HF 1KV HELKAMA LKSM-HF 4x50 FLEX BLACK D500
Product code
0645890

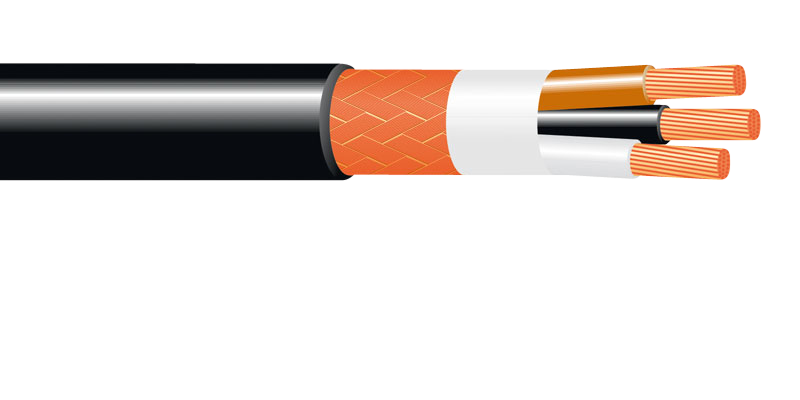

Halogen-free armored ship cable 1kV LKSM-HF 4x50 CL5 K500. Fine-stranded conductor class 5, conductor insulation XLPE. Black HF outer sheath. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable >= 1 kV, for permanent installation (EC003251)
Conductor materialCopper
Nominal cross section conductor50 mm²
Conductor categoryClass 5 = flexible
Shape of conductorRound
Number of cores4
Screenyes
Concentric conductorNone
Material outer sheathOther
Colour outer sheathBlack
Halogen free according to EN IEC 60754-2yes
Reaction-to-fire according to EN 13501-6: ClassNone
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approximate34 mm
Product codes
SAPASH966
STK0645890
PLC0645890
GTIN/EAN6410006458905
Manufacturer part number26307
Vendor material number0645890
Basic information
Package measurements (L x W x H)1000 x 35.5 x 35.5 mm
Package volume1.26 l
Package weight2.635 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121629
BrandHELMACAB
VendorHELMACAB OY KAARINA
The country of origin stated by the supplierFinland
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)16.864
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
Manufacturer
NameHelmacab Oy
Postal addressLakimiehenkatu 4, 20780 Kaarina, Finland
