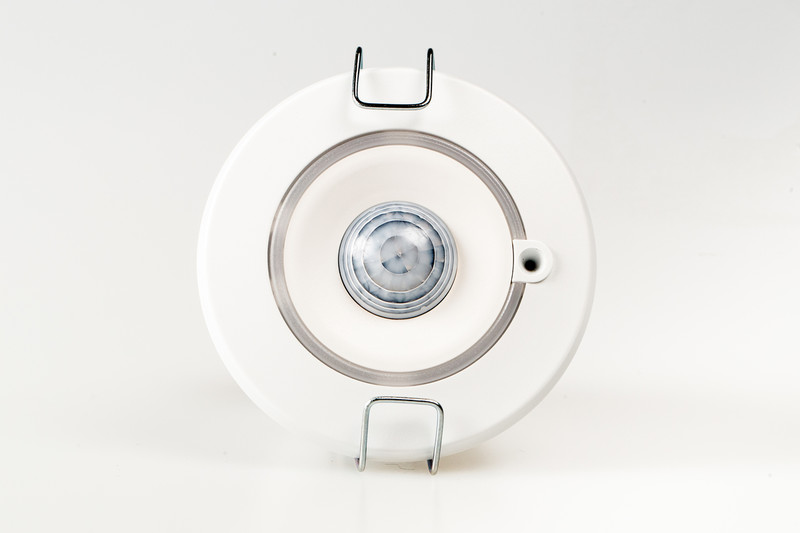

MOTION DETECTOR DIGIDIM 322D2 (DALI-2)
Product code
2602249
Dust- and water-tight high-level DALI-2 sensor (IP-65)
- Motion detection from a height of 15 meters
- Automatic shut-off function via light sensor
- Surface-mounted using SBB-D (to be ordered separately)
- Compatible with Helvar DALI-2 multimaster devices
- DALI-2 certified (IEC62386, Parts 101, 103, 303 and 304)
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Movement sensor/presence detector technologyPassive infrared
Constant light controlyes
HVAC-controlno
Networkableyes
Optimum mounting height10 m
Staircase light controllerno
Bridging switchno
Max. reach sideways21 m
With remote controlno
Mounting methodFlush-mounted
Suitable for ceiling mountingyes
Ceiling built-in mounting without installation boxyes
Suitable for wall mountingno
Connection typeScrewed terminal
Product codes
SAPCQW948
STK2602249
PLC2602249
GTIN/EAN5030797803220
Manufacturer part number322D2
Vendor material number322D2
Basic information
Package measurements (L x W x H)112 x 88 x 88 mm
Package volume0.867 l
Package weight0.12 kg
Base uniteach
Package units1
Package contents–
UNSPSC46171608
BrandHELVAR
VendorHELVAR OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.764
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
