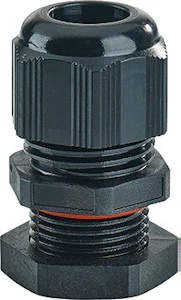

CABLE GLAND, PLASTIC ENYCASE AXM 20, IP66, M20
Product code
1715600
Explosion-proof gland seals for hazardous areas. Explosion-proof cable glands for hazardous area zones 2 and 22.
Features
- Metric threads M 20
- Cable diameters Ø 8–13 mm
- ISO thread M 20 x 1.5
- Drill hole Ø 20.2 mm
- Wall thickness up to 3 mm
- With strain relief and locking nut
- For internal and external installation under demanding conditions
- Hot wire test IEC 60 695-2-11: 960 °C
- Color: black, RAL 9005
- Enclosure rating: IP 66
Product details
Technical specifications
Product class (ETIM)Cable gland (EC000441)
Thread typeMetric
Nominal thread size metric/PG20
Wrench width25 mm
Hexagon angular dimension27 mm
Suitable for cable diameter8-13 mm
MaterialPlastic
Material qualityPolycarbonate (PC)
Surface protectionUntreated
Halogen freeyes
Glass-fibre reinforcedno
Degree of protection (IP)IP66
ColourBlack
RAL-number9005
Bend radius protection/trumpet flareno
With locknutyes
Product codes
SAPDFL558
STK1715600
PLC1715600
GTIN/EAN4012591159513
Manufacturer part numberAXM20
Vendor material number1715600
Basic information
Package measurements (L x W x H)85 x 85 x 40 mm
Package volume0.289 l
Package weight0.018 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39121311
BrandHENSEL
VendorFSM OY FONEL SECURITY
