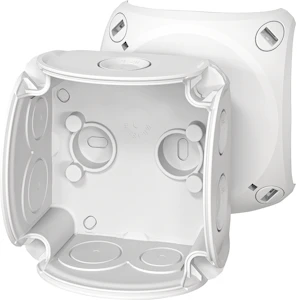

JUNCTION BOX DK 0100 G IP66 HARMAA PP-HF
Product code
1608217
Hensel's extremely high-quality German distribution boxes contain many excellent features that speed up and simplify installation.
- Without connectors
- Integrated soft membrane seals, removable for hub seal installations, sealing range 6.0-15.0 mm
- One membrane seal at the base, sealing range Ø 6.0-13.0 mm
- Cover can be sealed without additional accessories
- Cover gasket and replacement fastening set included in delivery
- Color: gray, RAL 7035
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelMounting box
Equipped withNone
Max. conductor cross section2.5 mm²
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets7
Inlet from the rearyes
Length84 mm
Width84 mm
Depth55 mm
Connectableno
Type of housing feed-throughSeal membrane
Product codes
SAPDEG406
STK1608217
PLC1608217
GTIN/EAN4012591161493
Manufacturer part numberDK0100G
Vendor material number1608217
Basic information
Package measurements (L x W x H)95 x 95 x 65 mm
Package volume0.587 l
Package weight0.09 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121303
BrandHENSEL
VendorFSM OY FONEL SECURITY
