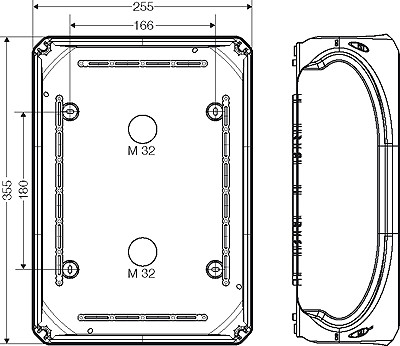

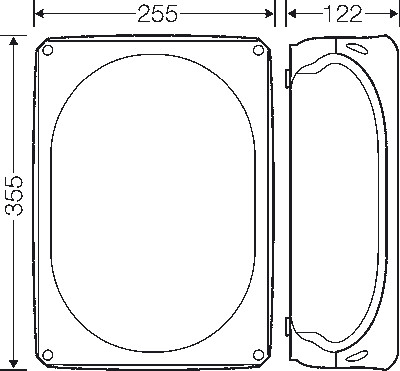

Junction box empty
Product code
1608157
The joy of innovation!
New challenges create new requirements. To make the ENYCASE junction box even better than before, we have tested and verified even the smallest details. Only this way can we ensure that the product manufacturing always meets the latest requirements and that users are not only excited about the old and reliable product, but also always about the new and even better one. ?? Tested product solutions from a market leader ?? Reliable and long-lasting products ?? Innovative applications with multiple installation benefits Why still need metal enclosures? These KF-series enclosures even exceed their technical values, are easier to install, and more versatile. Why still think about the direction of the conduits? They meet safety requirements for fire behavior: halogen-free, non-toxic, and with low smoke emission. Design and installation must consider SFS 6000-804.5: Electrical equipment installation and selection: Weather-resistant, UV-resistant, rain- and pressure-waterproof. Enclosure rating IP 66/IP 67 and IP 69K with ASS-/ASM gland seals. Quickly closable with quarter-turn latch with visible locking position. Fire behavior: Hot wire test IEC 60 695–2–11: 960°C, difficult to ignite, self-extinguishing material. Marine approvals: DNV (Det Norske Veritas) and GL (German Lloyd’s). Metric knockouts are available in multiple sizes. High impact resistance IK 09 (10 joules). Connectors always feature two cable entries, are strain-relieved, and suitable for fine-stranded cables without glands. Two cable entries enable the use of different types and sizes of cables. Mounting brackets are included in delivery. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelMounting box
Equipped withNone
Max. conductor cross section0 mm²
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting under waterno
For tube diameterOther
Number of inlets2
Inlet from the rearyes
Length355 mm
Width255 mm
Depth122 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPCDC235
STK1608157
PLC1608157
GTIN/EAN4012591122234
Manufacturer part numberKF 5000 H
Vendor material number1608157
Basic information
Package measurements (L x W x H)0.355 x 0.122 x 0.255 mm
Package volume0 l
Package weight1.217 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121303
BrandHENSEL
VendorFSM OY FONEL SECURITY
