Junction box uten klemmer grey
Product code
1608130
The joy of innovation!
New challenges create new requirements. To make the ENYCASE junction box even better than before, we have tested and verified even the smallest details. Only this way can we ensure that the product manufacturing always meets the latest requirements and that users are not only excited about the old and reliable product, but also always about the new and even better one. ?? Tested product solutions from a market leader ?? Reliable and long-lasting products ?? Innovative applications with multiple installation benefits Why still need metal enclosures? These KF-series enclosures even exceed their technical values, are easier to install, and more versatile. Why still think about the direction of the conduits? They meet safety requirements for fire behavior: halogen-free, non-toxic, and with low smoke emission. Design and installation must consider SFS 6000-804.5: Electrical equipment installation and selection: Weather-resistant, UV-resistant, rain- and pressure-waterproof. Enclosure rating IP 66/IP 67 and IP 69K with ASS-/ASM gland seals. Quickly closable with quarter-turn latch with visible locking position. Fire behavior: Hot wire test IEC 60 695–2–11: 960°C, difficult to ignite, self-extinguishing material. Marine approvals: DNV (Det Norske Veritas) and GL (German Lloyd’s). Metric knockouts are available in multiple sizes. High impact resistance IK 09 (10 joules). Connectors always feature two cable entries, are strain-relieved, and suitable for fine-stranded cables without glands. Two cable entries enable the use of different types and sizes of cables. Mounting brackets are included in delivery. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelMounting box
Equipped withScrewed terminal
Max. conductor cross section10 mm²
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther

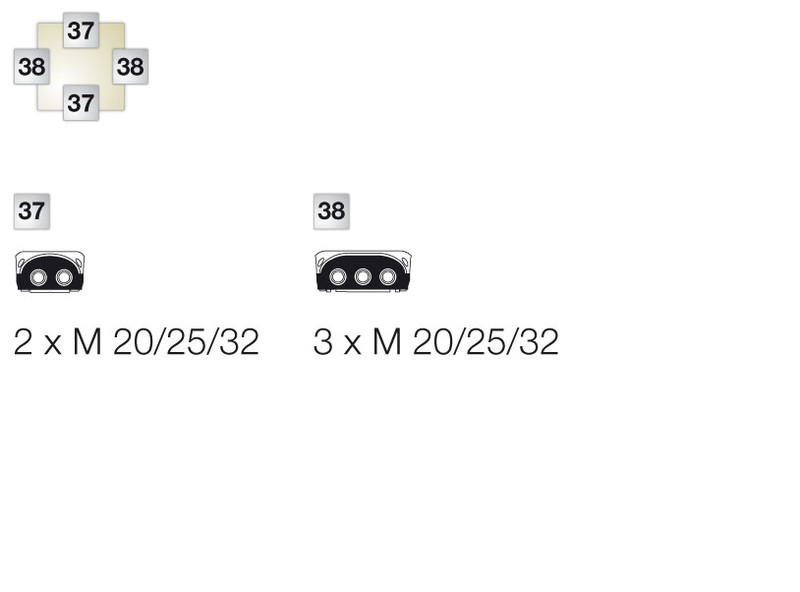

Number of inlets10
Inlet from the rearyes

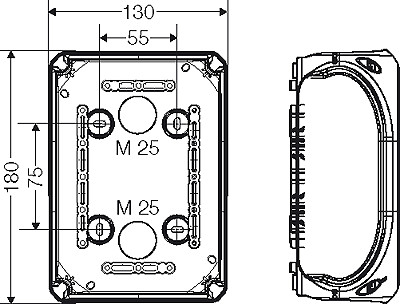

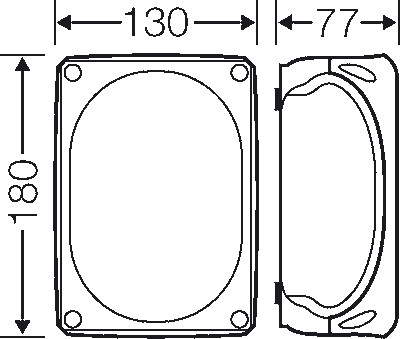

Length180 mm
Width130 mm
Depth77 mm
Connectableno
Type of housing feed-throughPreembossing
Product codes
SAPCDC241
STK1608130
PLC1608130
GTIN/EAN4012591121886
Manufacturer part numberKF 2500 G
Vendor material number1608130
Basic information
Package measurements (L x W x H)0.18 x 0.077 x 0.13 mm
Package volume0 l
Package weight0.322 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39121303
BrandHENSEL
VendorFSM OY FONEL SECURITY
