Junction box without clamps, black

Product code
1608140
The joy of innovation! New challenges create new requirements. To make the ENYCASE junction box even better than before, we have tested and verified even the smallest details. Only this way can we ensure that the product manufacturing always meets the latest requirements and that users are not only excited about the old and reliable product, but also always about the new and even better one. ?? Tested product solutions from a market leader ?? Reliable and long-lasting products ?? Innovative applications with multiple installation benefits Why still need metal enclosures? These KF-series enclosures even exceed their technical values, are easier to install, and more versatile. Why still think about the direction of the conduits? They meet safety requirements for fire behavior: halogen-free, non-toxic, and with low smoke emission. Design and installation must consider SFS 6000-804.5: Electrical equipment installation and selection: Weather-resistant, UV-resistant, rain- and pressure-waterproof. Enclosure rating IP 66/IP 67 and IP 69K with ASS-/ASM gland seals. Quickly closable with quarter-turn latch with visible locking position. Fire behavior: Hot wire test IEC 60 695–2–11: 960°C, difficult to ignite, self-extinguishing material. Marine approvals: DNV (Det Norske Veritas) and GL (German Lloyd’s). Metric knockouts are available in multiple sizes. High impact resistance IK 09 (10 joules). Connectors always feature two cable entries, are strain-relieved, and suitable for fine-stranded cables without glands. Two cable entries enable the use of different types and sizes of cables. Mounting brackets are included in delivery. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelMounting box
Equipped withNone
Max. conductor cross section0 mm²
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther

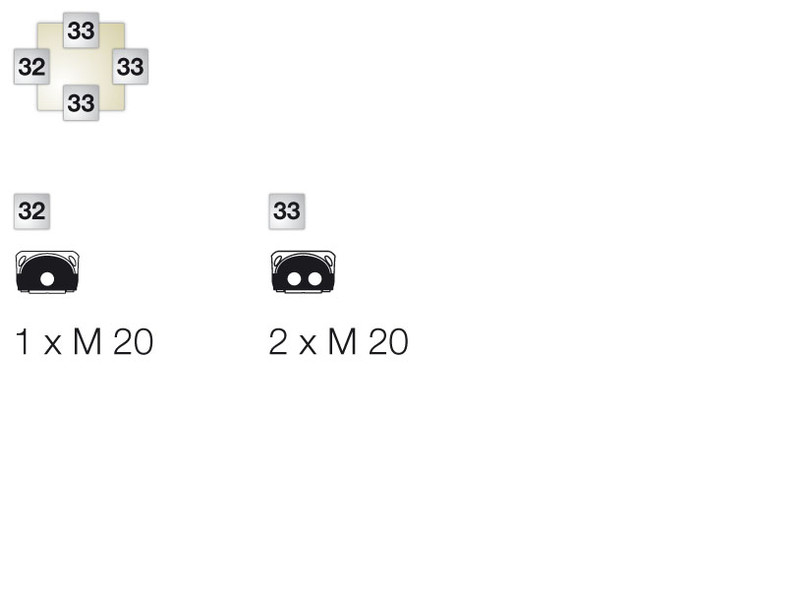

Number of inlets7
Inlet from the rearno

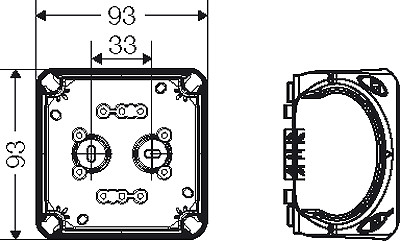

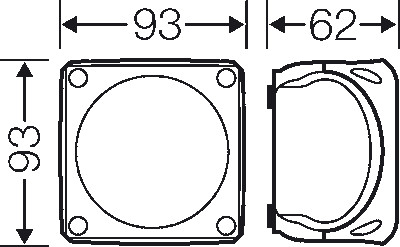

Length93 mm
Width93 mm
Depth62 mm
Connectableno
Type of housing feed-throughPreembossing

Product codes

SAPCDC199
STK1608140
PLC1608140
GTIN/EAN4012591121701
Manufacturer part numberKF 0200 B
Vendor material number1608140

Basic information

Package measurements (L x W x H)93 x 93 x 62 mm
Package volume0.536 l
Package weight0.108 kg
Base uniteach
Package units1 / 5
Package contents
UNSPSC39121303
BrandHENSEL
VendorFSM OY FONEL SECURITY
