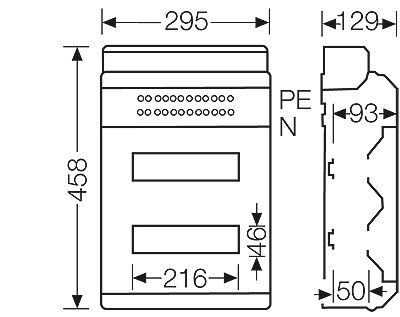

MODULE COVER SURFACE ENYBOARD KV 2524, IP54, 400VAC
Product code
3430666
ENYBOAR module enclosures are manufactured from high-quality durable plastic and enable demanding 3-54 module installations. The enclosures have an IP54 or IP65 protection rating and Class II protection and are certified in accordance with standards SFS-EN 60439-3 / IEC 60439-3.
The enclosure is halogen-free and silicone-free. The enclosure is gray (RAL 7035). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Small distribution board (EC000214)
Mounting methodSurface mounted
Number of rows2
Width in number of modular spacings12
Type of coveringDoor
Cover modelClosed
Transparent cover/dooryes
With lockno
Housing materialPlastic
Built-in depth93 mm
Inner depth114 mm
DIN-railyes
With mounting plateno
Extension possibleyes
EMC-versionno
ColourGrey
Product codes
SAPCID289
STK3430666
PLC3430666
GTIN/EAN4012591624424
Manufacturer part numberKV2524
Vendor material number3430666
Basic information
Package measurements (L x W x H)420 x 310 x 140 mm
Package volume18.228 l
Package weight2.42 kg
Base uniteach
Package units1 / 38
Package contents–
UNSPSC39121304
BrandHENSEL
VendorFSM OY FONEL SECURITY
