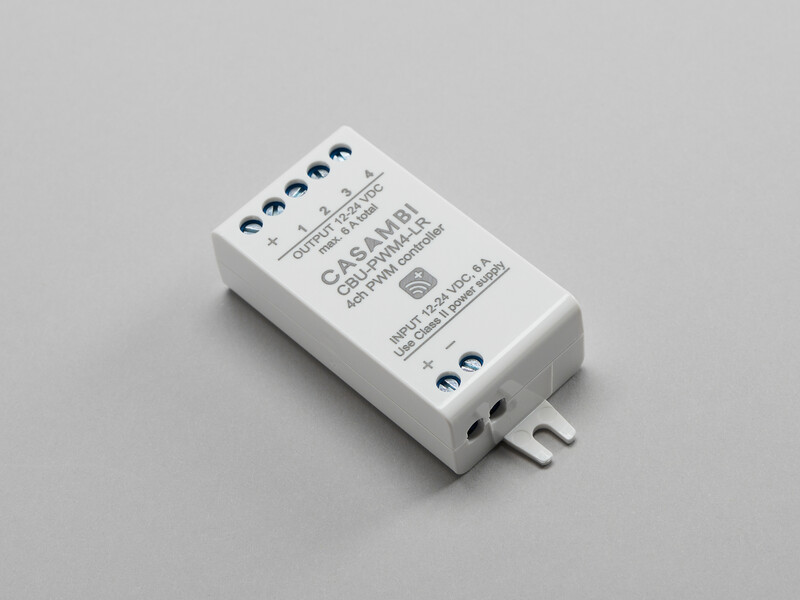

CONTROL UNIT CASAMBI PWM4
Product code
2606121
Efficient and flexible module for wireless control of various lighting solutions. The PWM4-LR provides four independent outputs for controlling monochrome, RGB, RGBW, or tunable white LED strips. Power can be freely distributed among the four channels. Maximum load is 6 A. Versatile modules are suitable for both new installations and upgrades where wireless control, flexibility, and compatibility are important. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Lighting control system component (EC000533)
ModelController unit
Operating methodOther
Degree of protection (IP)IP20
Type of power supplyDC
With mounting plateno
Operation by Bluetoothyes

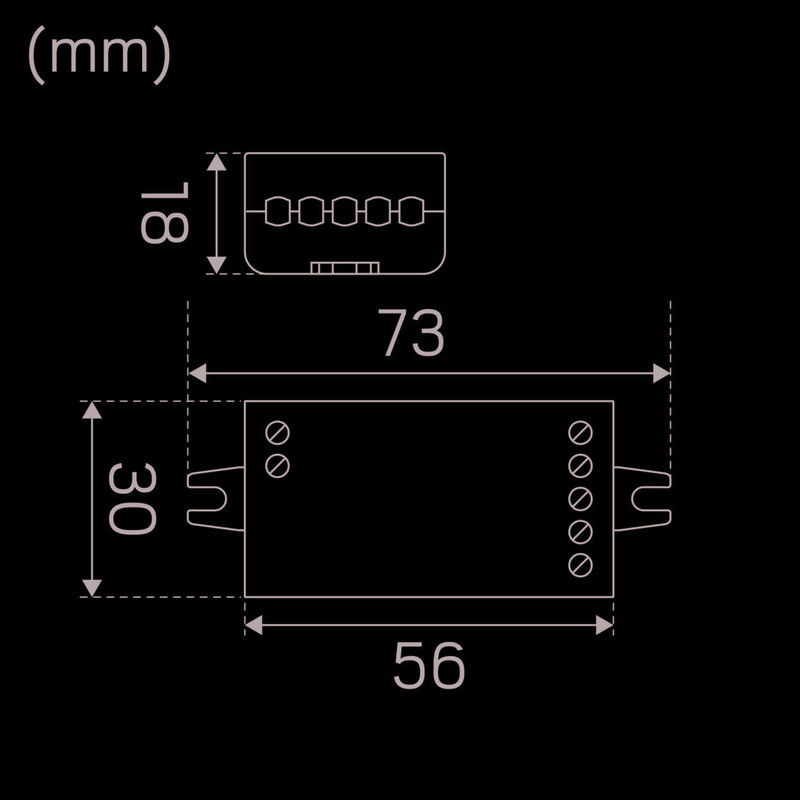

Width73 mm
Height30 mm
Depth18 mm
Product codes
SAPDLZ069
STK2606121
PLC2606121
GTIN/EAN7392971156491
Manufacturer part number1361266
Vendor material number2606121
Basic information
Package measurements (L x W x H)73 x 30 x 18 mm
Package volume0.039 l
Package weight0.023 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111541
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
