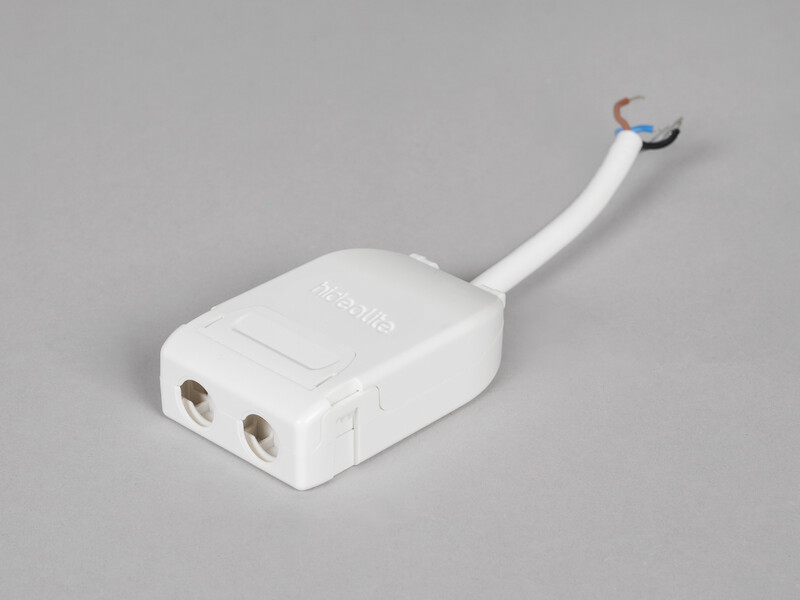

ELECTRICAL ACCES. Q-BOX MICRO IP20 5-POLE CONNECT.BOX
Product code
4143868
Small internal mounting box made from halogen-free plastic. Equipped with quick-connect terminals for 0.5-2.5 mm² cable connections. Installation can be performed entirely without tools. Tool-free cable pull-out and easy cable chaining enable maintenance-friendly installation.
DALI/Push compatible. Quick-connect terminal on the primary side for chaining, with a 10 cm cable on the secondary side for connection to the device.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringCover
Cover modelClosed
Type of doorNone
Transparent cover/doorno
With lockno

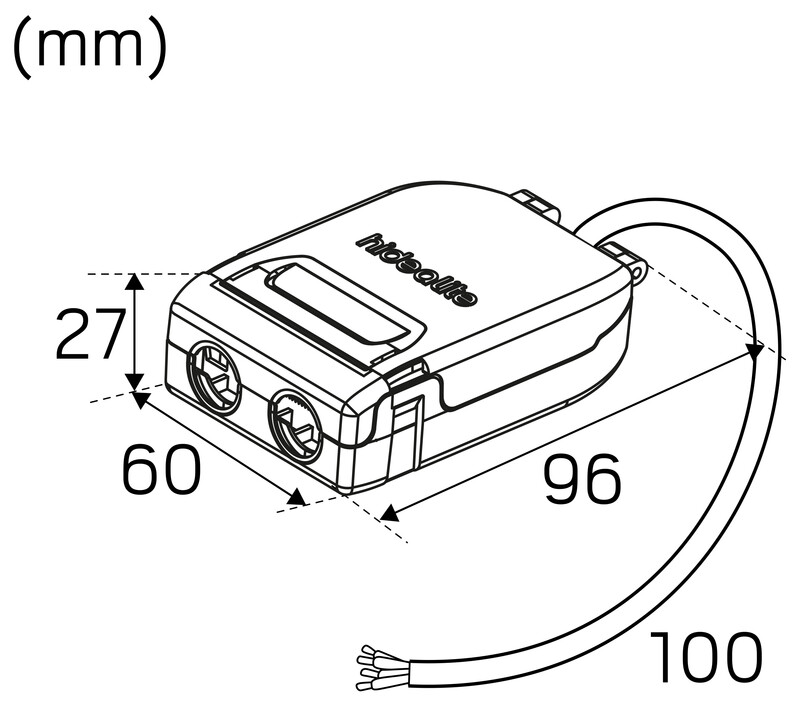

Height27 mm
Width60 mm
Depth96 mm
ColourWhite
RAL-number9016
Extension possibleno
Number of conduit inlets2
Housing materialPlastic
Surface protectionUntreated
Product codes
SAPCZC923
STK4143868
PLC4143868
GTIN/EAN7392971146799
Manufacturer part number7910195Q
Vendor material number4143868
Basic information
Package measurements (L x W x H)160 x 100 x 27 mm
Package volume0.432 l
Package weight0.074 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC39111544
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
