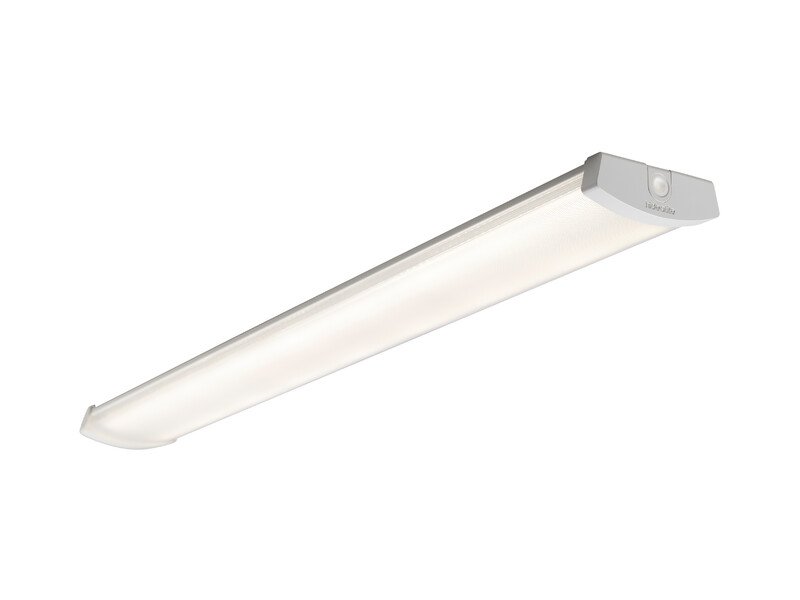

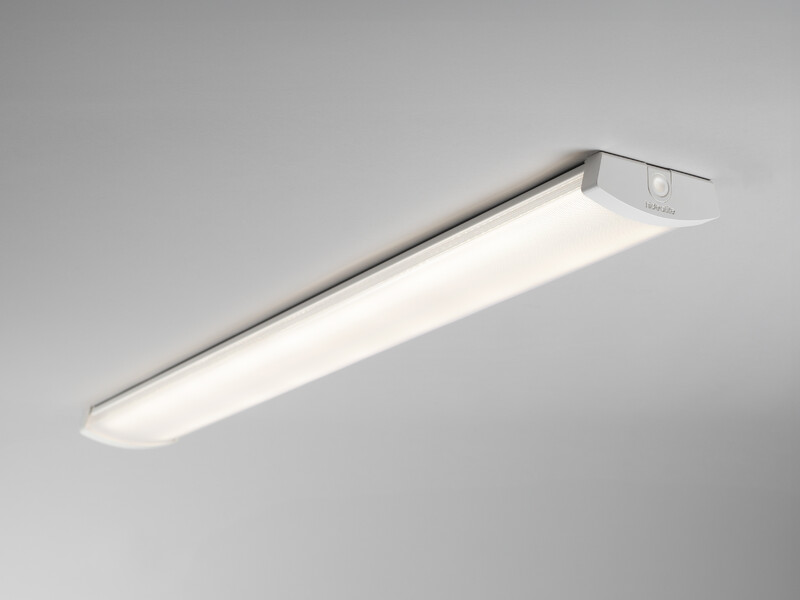

INDUSTR. LUMIN LITELINE G2 IP44 6300LM 40W 3/4K WH DA2
Product code
4318387

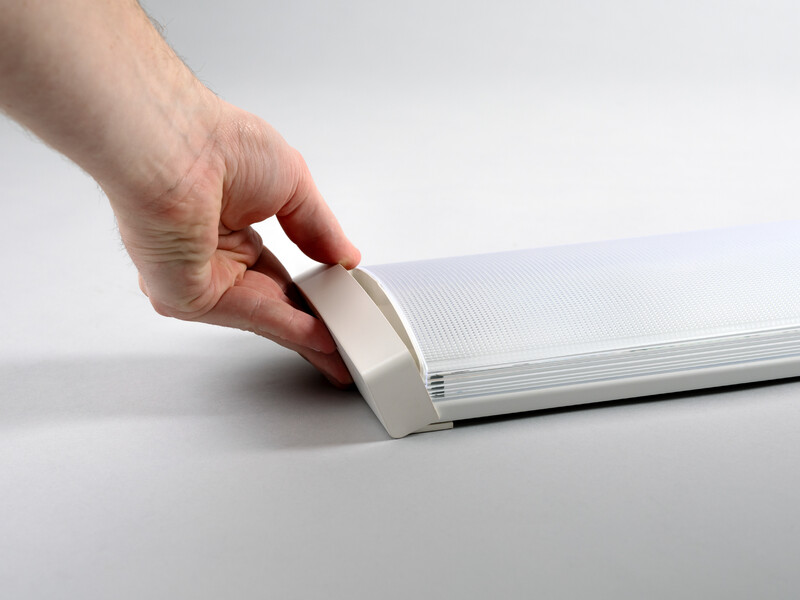

Highly efficient replacement for fluorescent tubes. DALI-2 control. Housing made of white-painted steel sheet, patented foldable ends and prismatic, impact-resistant polycarbonate lens with diffuser film for uniform light distribution. Ends and lens made of recycled plastic.
Replaceable LED and driver, option to select color temperature and light output adjustment via DIP switches. Quick-connectors on both ends for chaining. Standard through-wiring 5 x 2.5 mm².
Liteline G2 is the perfect choice when high light output and performance requirements are needed, such as in production facilities, workshops, or warehouses. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialSteel
Housing colourWhite
Voltage typeAC
Nominal voltage220-240 V
Nominal current500-800 mA
Type of control gearLED operating device current-controlled
With control gearyes
Exchangeable control gearyes
Dimming DALIyes
Dimming manufacturer's proprietary systemno
Dimming RFno
Light distributorDiffuser lens/optic/panel
Product codes
SAPDCL348
STK4318387
PLC4318387
GTIN/EAN7392971149349
Manufacturer part number7218593
Vendor material number4318387
Basic information

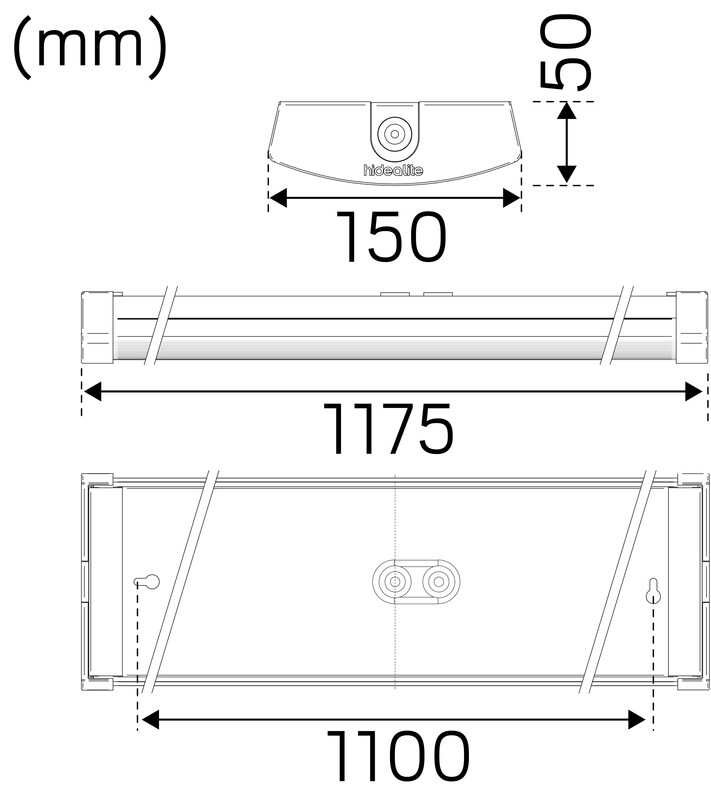

Package measurements (L x W x H)1190 x 155 x 55 mm
Package volume10.145 l
Package weight2.76 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39111605
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)85.56
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001043
Documents (1)
Sustainability brochures & documents
Manufacturer
NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
