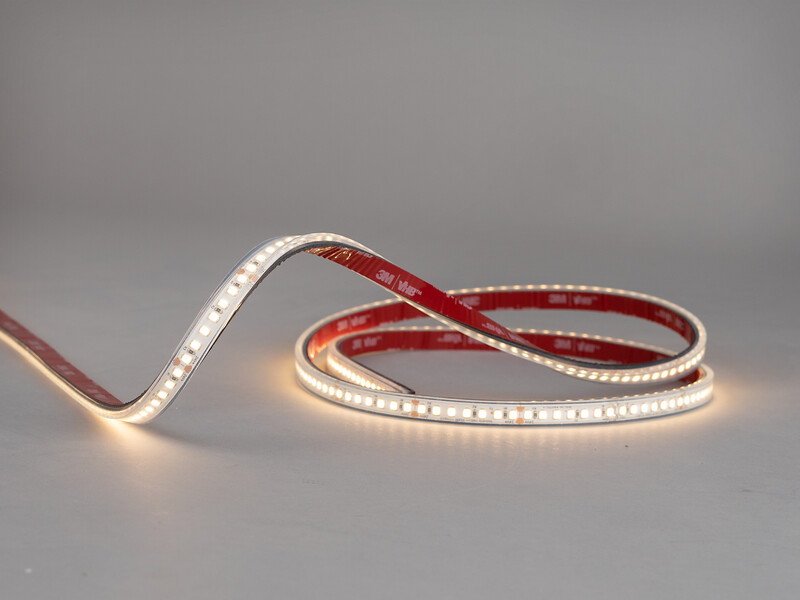

LED STRIP LEDSTRIP 24V MIDLUM IP67 1160LM/M 9,6W/M 940 /M
Product code
4158540
LED strip 24V IP67 is available in three light levels: Low, Mid, and High, making it easier to find the right light for indoor and outdoor use. Do you want a calm and relaxed atmosphere? Choose Low. Do you need strong lighting to highlight specific areas? Choose High. The perfect choice when you want to enhance the lighting character regardless of the environment.
LED strip 24V IP67 fits excellently with Hide-a-lite aluminum profiles. The light has excellent color rendering, Ra>90.
Available by the meter. Connection set available with electrical number 4158575. The connection device must be ordered separately according to the installation location and desired dimming technique. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter168
Lamp power per meter9.6 W
Luminous flux per meter1160 lm
Luminaire efficacy120.8 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmeryes
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C50000 h
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)79 %
Product codes
SAPDCL305
STK4158540
PLC4158540
GTIN/EAN7392971149738
Manufacturer part number7509849
Vendor material number4158540
Basic information
Package measurements (L x W x H)1000 x 330 x 330 mm
Package volume12.524 l
Package weight0.08 kg
Base unitMeter
Package units1
Package contents–
UNSPSC39111544
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (10)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.04
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
