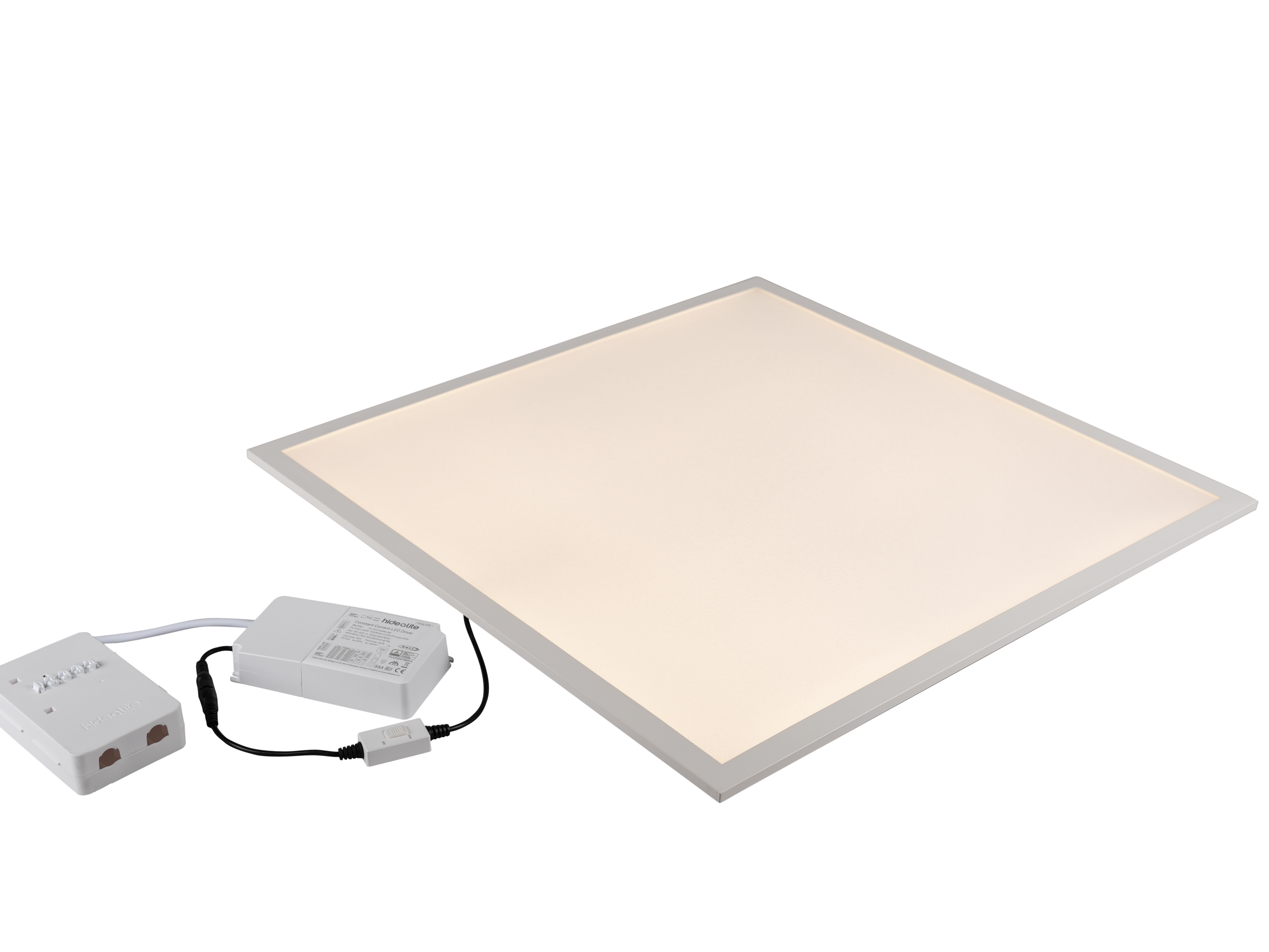

MODULAR LUMINAIRE SKY IP40 4850LM 42W 830/840 DA2
Product code
4143812
LED panel with a microprismatic glare protection and excellent lighting comfort, meeting task lighting and UGR requirements (UGR<19 in offices) under standard conditions. Installation via visible mounting profile on suspended ceiling, can be supplemented with a raised frame for surface mounting. Optional color temperature via DIP switch.
Includes DALI-2 controller and Linect universal quick-connect system. Raised frame and cover plate available as optional accessories. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, structured
Type of gridNone
Voltage typeAC
Product codes
SAPCOP691
STK4143812
PLC4143812
GTIN/EAN7392971143774
Manufacturer part number4127
Vendor material number4143812
Basic information
Package measurements (L x W x H)730 x 650 x 52 mm
Package volume24.674 l
Package weight2.128 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39111521
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (15)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)22.1312
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
