MODULAR LUMINAIRE SKY OP IP40 5500LM 3/4K DA2 LINECT
Product code
4158563

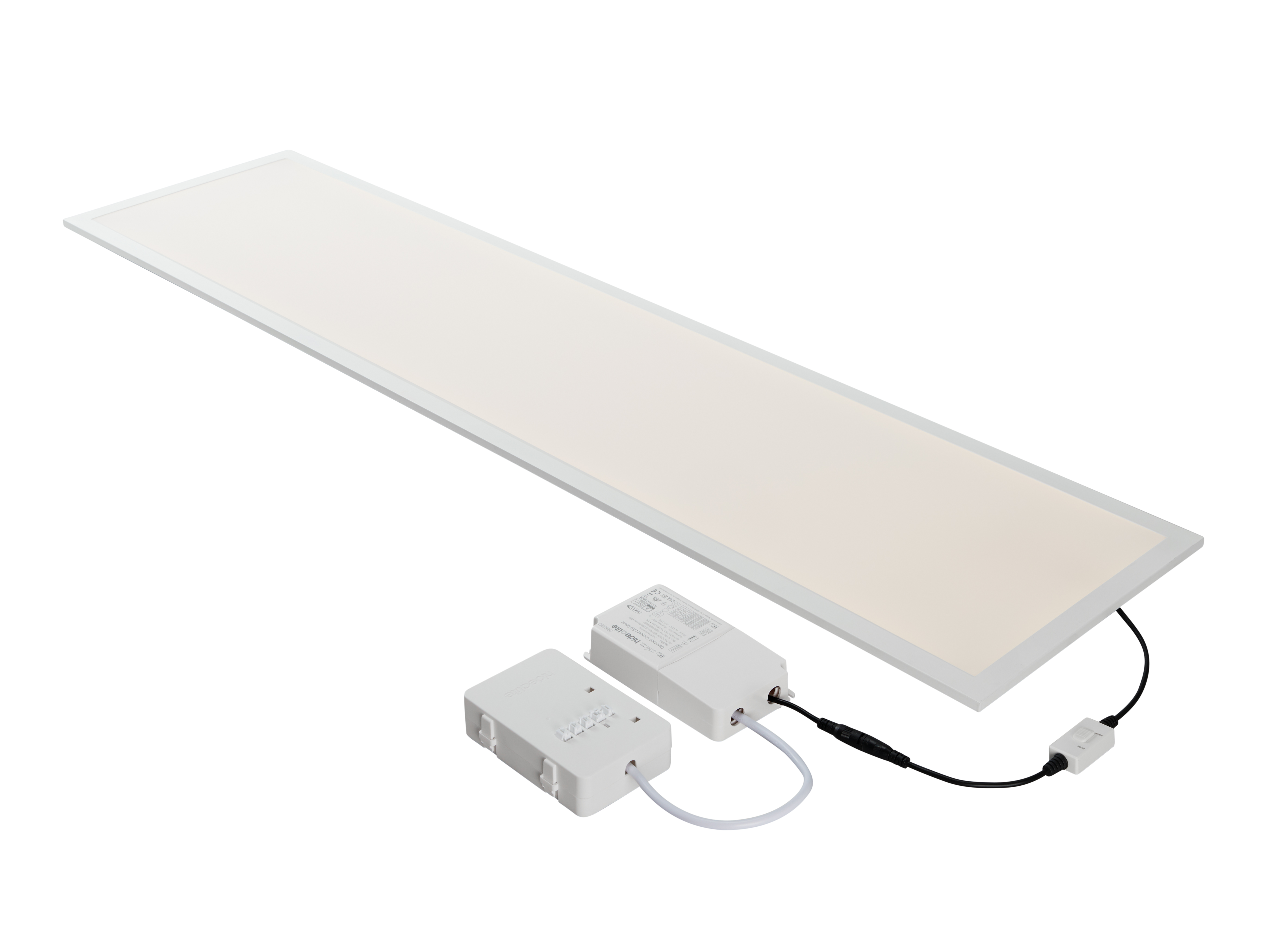

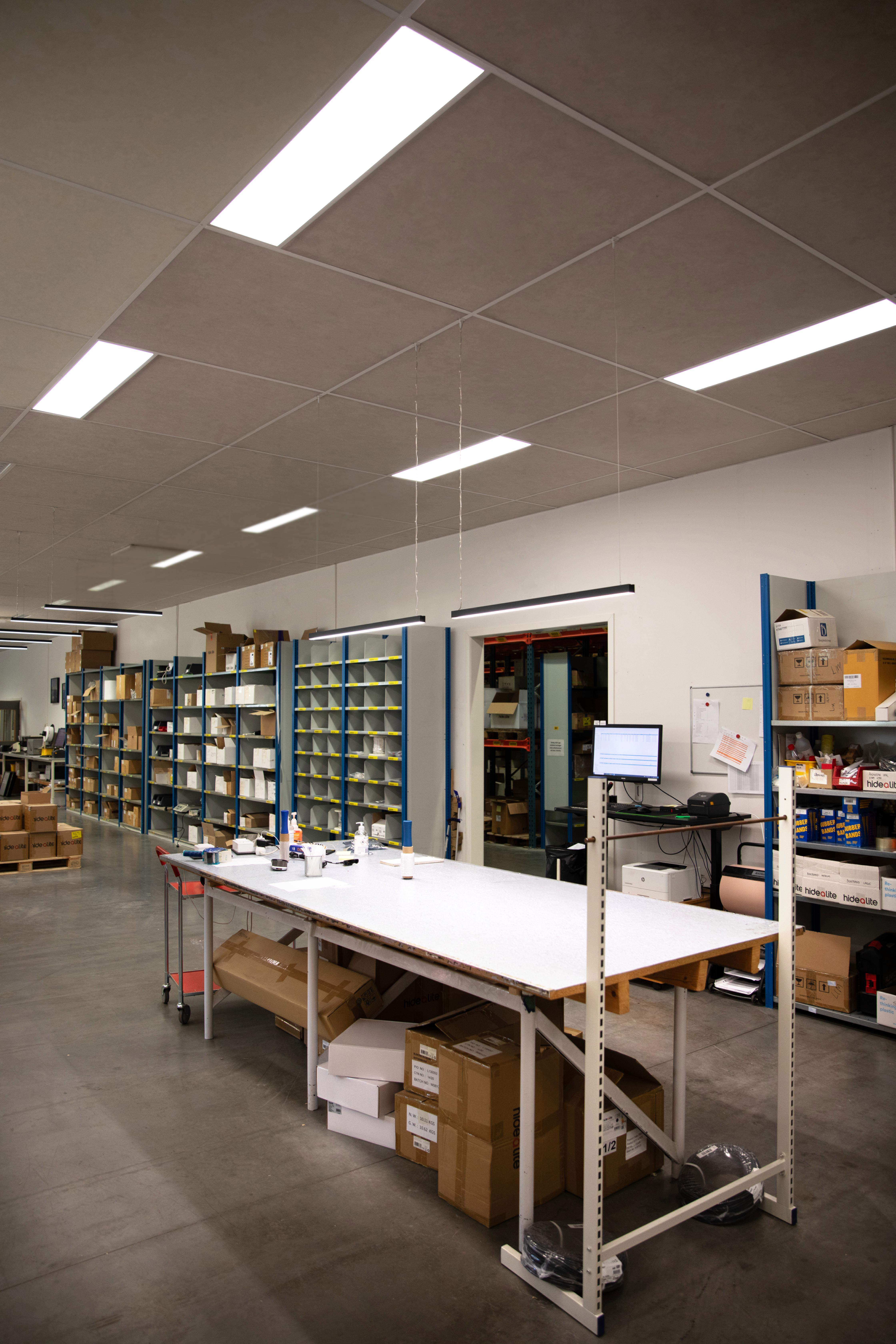

300 x 1200 LED panel with anti-glare diffuser, replacing T5 2 x 28 and T8 2 x 36 fluorescent tubes. Perfectly suited for installation in suspended ceilings with visible support profiles.
A mounting frame with pre-drilled holes for surface-mounted cables is available as an accessory for surface mounting.
Easily select the color temperature of 3000K or 4000K using the DIP switch. The panel is supplied complete with all necessary fittings.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protection housingPowder coating
Housing colourWhite
Material coverPlastic, opal
Type of gridNone
Product codes
SAPDFL793
STK4158563
PLC4158563
GTIN/EAN7392971150512
Manufacturer part number7027006
Vendor material number4158563
Basic information
Package measurements (L x W x H)1325 x 315 x 44 mm
Package volume18.364 l
Package weight2.05 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39111544
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)26.65
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
