SEALED INDUS. LUMIN. LITELINE IP66 8400LM 52W 3/4K GR DA2

Product code
4318398

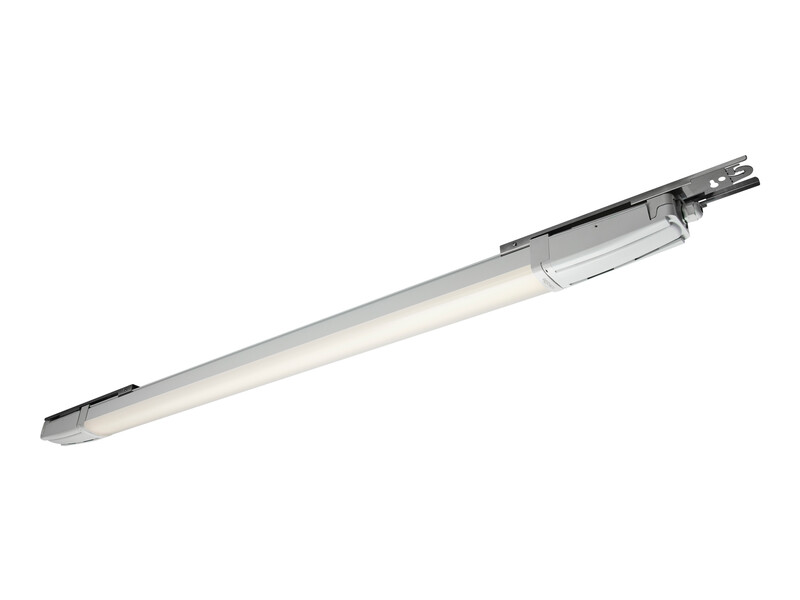

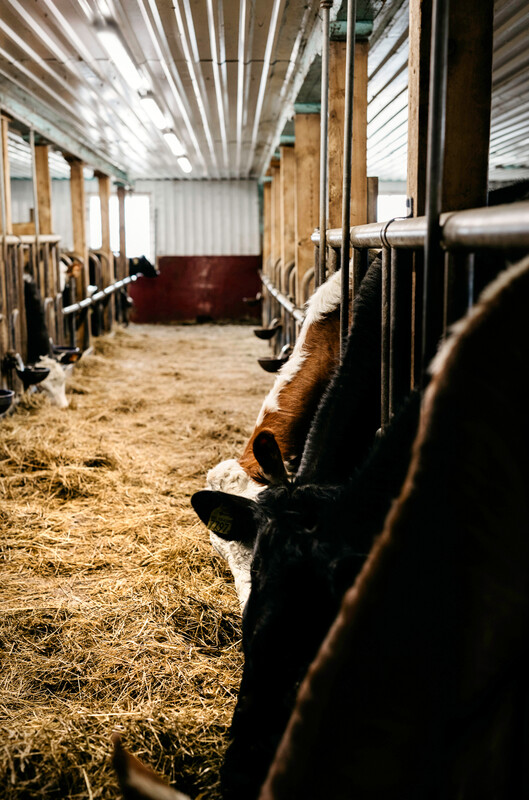

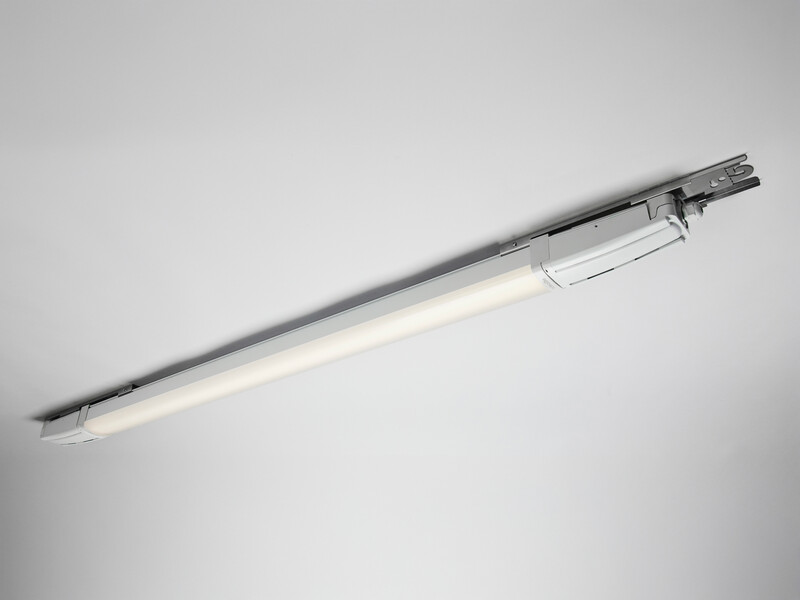

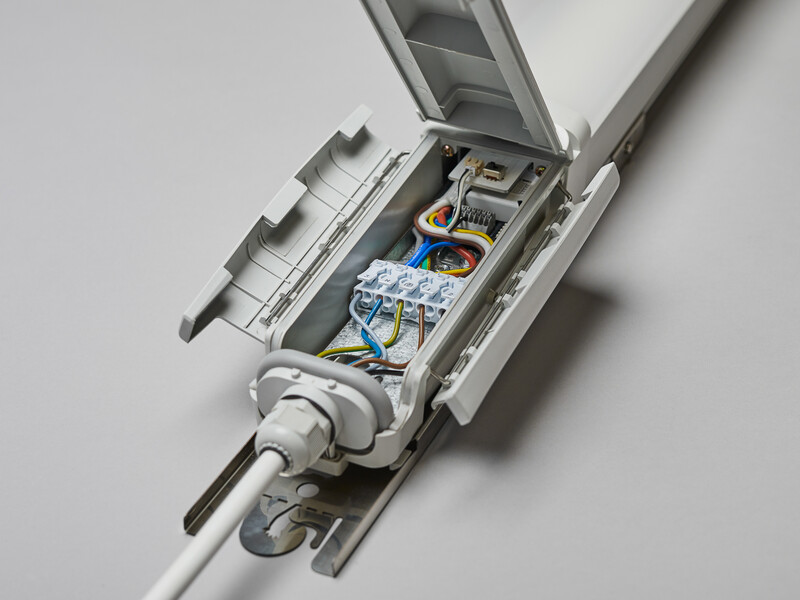

Liteline IP66+ is a light fixture designed for demanding environments. It is engineered to withstand corrosion and is suitable for areas such as pigsties, livestock buildings, and stables. Thanks to its carefully designed structure, access to the connection and control unit can be achieved without opening the housing. Lighting can be controlled via On/Off or DALI control. Adjustable mounts enable quick and smooth installation. The Liteline IP66+ features a replaceable LED and driver, selectable color temperature of 3000K/4000K, and light output adjustment via DIP switch. Through-wiring for On/Off 5x2.5 mm². M20 cable entries on both ends, plus an optional accessory with two M20 entries as needed. Suitable for mounting on a light rail, ceiling mounting via keyholes, and with the included cable suspension featuring a hook and lock. The D marking indicates that the luminaire is suitable for environments with an increased fire risk. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialPlastic
Housing colourGrey
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current700 - 1050 mA
Type of control gearLED operating device current-controlled
With control gearyes
Exchangeable control gearyes
Dimmableyes

Product codes

SAPDLY986
STK4318398
PLC4318398
GTIN/EAN7392971150659
Manufacturer part number7219270
Vendor material number4318398

Basic information

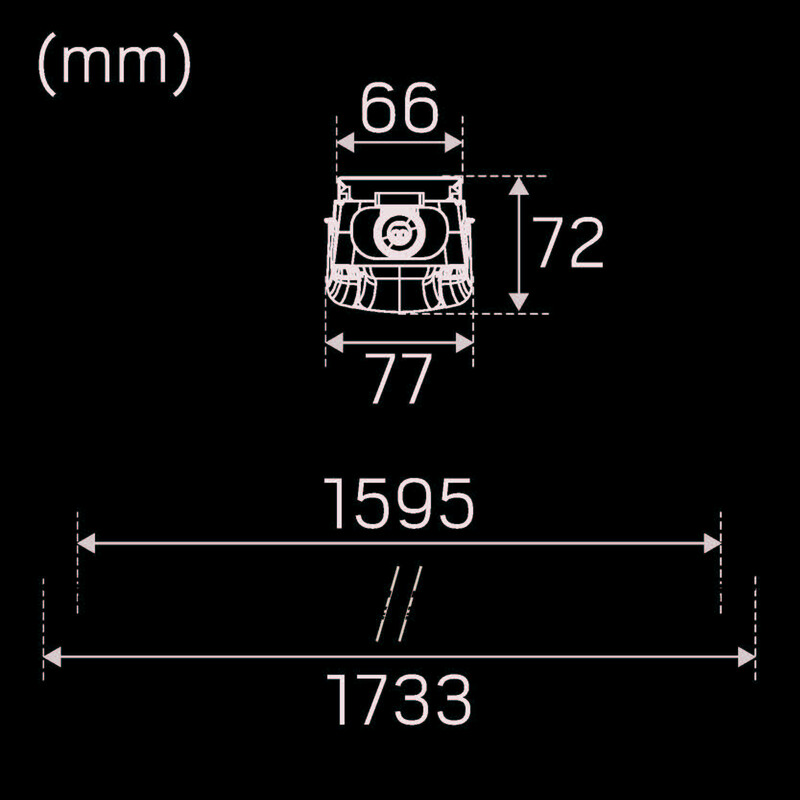

Package measurements (L x W x H)1595 x 77 x 72 mm
Package volume8.843 l
Package weight2.83 kg
Base uniteach
Package units1 / 4
Package contents
UNSPSC39111544
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)109.8634
GWP, uniteach
Source for GWP dataEPD
