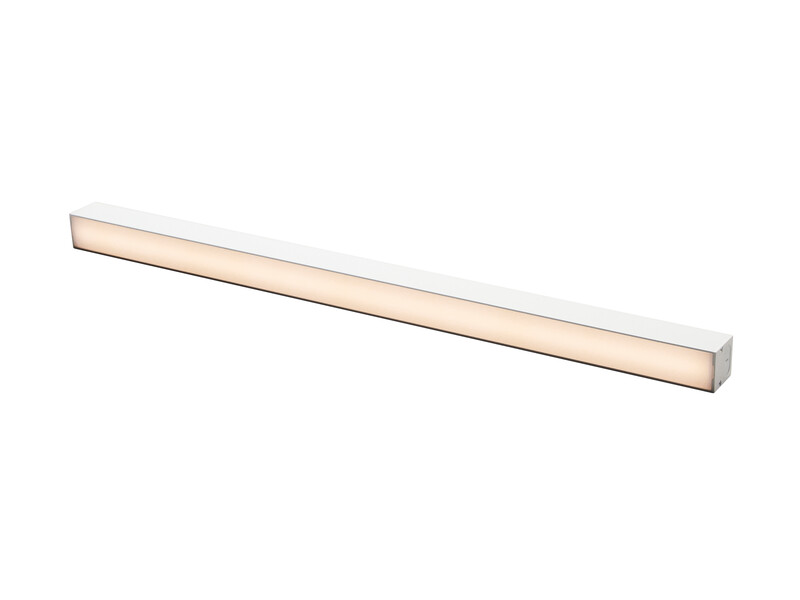

SURFACE MNT/SUS. LUM. FLEXLINE IP20 920LM 10W 27/3/4K WH

Product code
4158652
Flexline is a pre-assembled 230V profile solution with a connector. A wide range of additional accessories available, such as extension pieces, mounting kits, and connectors (to be ordered separately). Lengths from 30 cm to 2 meters. The light fixture has pre-drilled holes and is supplied with a double-sided tape to facilitate installation. Screws must always be used for mounting. Select the color temperature via the DIP switch (2700K, 3000K, or 4000K). The LED module and driver are replaceable. Dimmable with an external dimmer and can be connected up to a total length of 10 meters. Ideal for a wide range of applications such as behind curtains, in recessed areas, niches, shelving systems, under cabinets, or suspended above checkout counters. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Pendant luminaire (EC001743)
Lamp typeLED exchangeable
With light sourceyes
Housing colourWhite
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current220 - 220 mA
With control gearyes
Exchangeable control gearyes
Dimmableyes
Dimming phase cut-off (trailing edge)yes
Dimming phase cut-on (leading edge)no
Light distributorDiffuser lens/optic/panel
Containing product according to 2019/2020/EUyes
Rated lifetime L70/B50 at 25 °C100000 h
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)91 %

Product codes

SAPDLZ072
STK4158652
PLC4158652
GTIN/EAN7392971153216
Manufacturer part number7511475
Vendor material number4158652

Basic information

Package measurements (L x W x H)500 x 27 x 28 mm
Package volume0.378 l
Package weight0.29 kg
Base uniteach
Package units1 / 30
Package contents
UNSPSC39111544
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)5.98
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents
