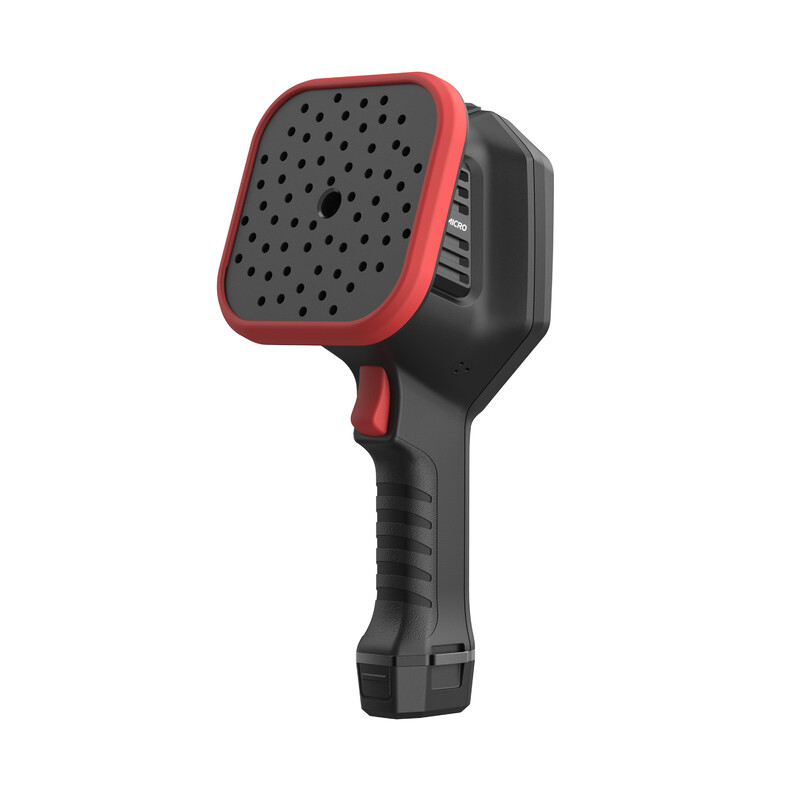

THERMAL CAMERA HIKMICRO AI76 ACOUSTIC CAMERA
Product code
6702522
HIKMICRO AI76 acoustic camera visualizes and locates sound using 136 MEMS microphones. The acoustic camera can detect leaks in pneumatic systems and partial discharges in high-voltage applications. The camera operates in the 0–96 kHz range, and the frequency can be manually adjusted. Easily and quickly identify fault locations using the large 4.3-inch LCD touchscreen. The camera displays findings in real time overlaid on the integrated digital image, making it easy to pinpoint the fault. The lightweight and user-friendly camera enables inspection from a safe distance. Use the free Hikmicro Analyzer Acoustic software to analyze images and generate reports based on findings.
Key Features
- 136 MEMS microphones
- Real-time visualization of sound sources on screen
- Real-time estimation of leak rate and cost in pneumatic systems
- Automatic classification of partial discharges
- Free Analyzer Acoustic software for image analysis and reporting
- Camera: 5 MP
- Display: 800 x 480, 4.3-inch LCD touchscreen
- 1.0x – 16.0x digital zoom
- 8 different color palettes
Product details
Technical specifications
Product class (ETIM)Ultrasonic leak detector (EC004310)
Sensor typeMicrophone array
TechniqueMEMS
Frequency sound signal0 - 96 kHz
Measuring range-15 - 120 dB
Operating distance0.3 - 150 m
IndicationLCD/acoustic
Visual imageyes
Display resolutionOther
Display diagonal10.9 cm
With touch screenyes
Video recordingyes
Frames per second (fps)25
Ambient temperature-20 - 50 °C
With laserno
Distance measurementno
Product codes
SAPDFY958
STK6702522
PLC6702522
GTIN/EAN6974004643904
Manufacturer part numberHM-AP5DN-W/W-AI76
Vendor material numberHM-AP5DN-W/W-AI76
Basic information
Package measurements (L x W x H)500 x 250 x 410 mm
Package volume51.25 l
Package weight6.035 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandHIKMICRO
VendorINFRADEX OY
