THERMAL CAMERA HIKMICRO MINI2 V2 256X192, 25 HZ, 400C

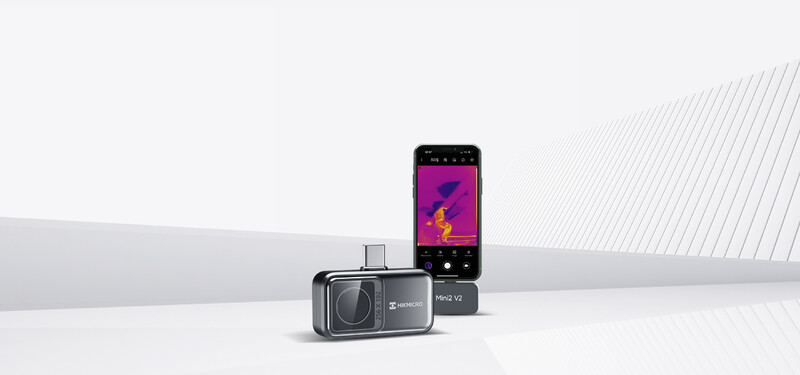

Mini2 V2 - Thermal Camera for iOS and Android Devices

Make your phone smarter with the HIKMICRO thermal camera, featuring top-tier performance in a compact size—explore your world with thermal imaging and precise measurement accuracy.

Type-C and Lightning Compatible

HIKMICRO Mini2 V2 is compatible with iPhone 16 series and older iPhone models, as well as Android devices. The included Lightning-to-Type-C adapter is suitable for iPhone 14 models and older iOS devices.

Exceptionally Clear Thermal Image

The Mini2 V2 features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 × 192 (49,152) pixels. Optimized image processing algorithms ensure clear thermal images.

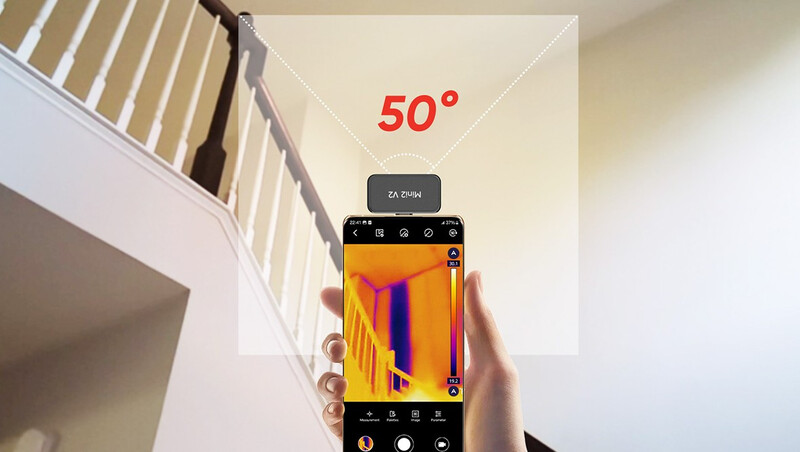

Wide-Angle Optics

The HIKMICRO Mini2 V2’s 50° wide-angle lens provides an extensive field of view (FOV), ideal for inspecting walls, floors, and detecting leaks, insulation issues, and air leaks.

Accurate Temperature Measurements and Compact Size

Mini2 V2 accurately measures temperatures from -20 °C to 400 °C with an accuracy of ±2 °C / ±2 %.

Compact Size

Measuring only 42 × 22.5 × 11.2 mm and weighing just 20 g, the Mini2 V2 easily fits in your pocket or tool kit—a small, portable, and always ready-to-use thermal camera.

Plug and Play

HIKMICRO Mini2 V2 connects instantly to iPhone and Android devices and is ready to use within seconds. Adapters accommodate thick phone cases. An extension cable facilitates inspections and imaging in hard-to-reach areas.

Power Directly from Your Device

The HIKMICRO Mini2 V2 thermal camera has no internal battery, so you never need to charge it or carry a charging cable. It draws power from the connected device and is designed to consume minimal power, extending your mobile device’s battery life.

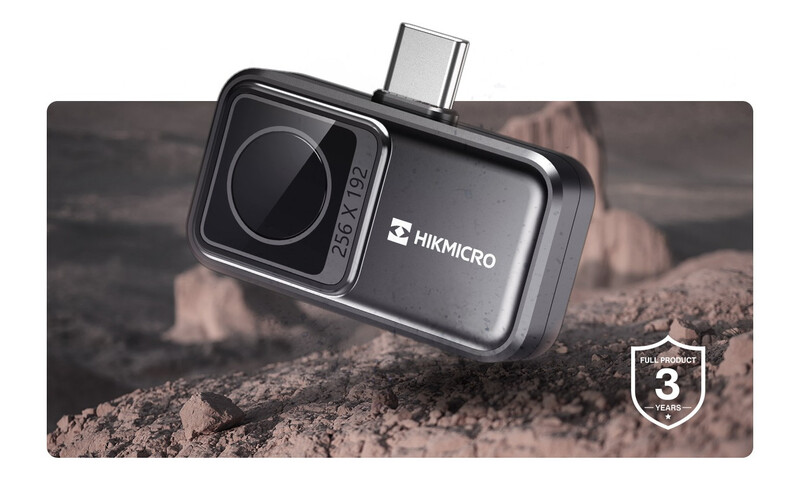

Durable and Reliable

The Mini2 V2 is designed to withstand professional, home, or leisure use. It features an IP40-rated aluminum housing and has passed a 1-meter drop test. The product also comes with a three-year warranty.

Multiple Imaging Modes

HIKMICRO Mini2 V2 supports PIP mode (picture-in-picture), customizable color palettes, and 15 preset palettes. Easy and fast photo and video capture.

Professional-Grade Settings

Professional settings enable optimal thermal imaging accuracy and precise temperature readings from various surfaces.

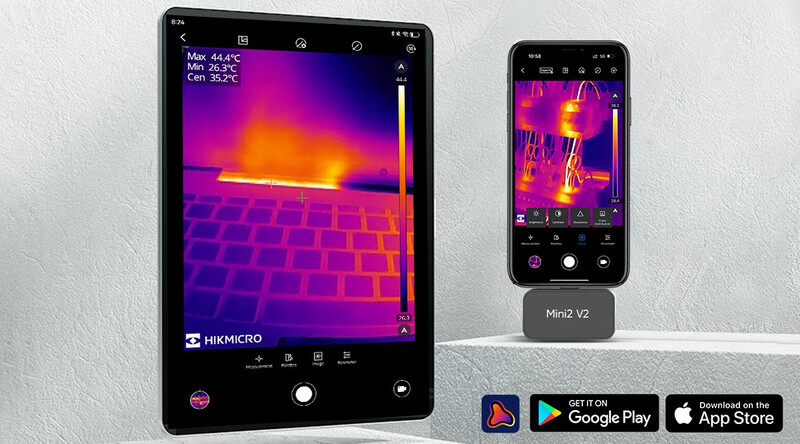

HIKMICRO VIEWER and HIKMICRO ANALYZER

The HIKMICRO Viewer app enables rapid report generation on-site, customization of job-specific data, adjustment of measurement settings, addition of annotations, and sharing reports with clients or supervisors. The HIKMICRO Analyzer software’s online preview feature is especially useful, providing real-time access to thermal imaging data and significantly improving efficiency.

Supported Devices:

• iPhone: iPhone 7 and newer, excluding iPhone 17 series.
• iPad: iPad (2016) and iPad Pro (9.7 inch) and newer.
• Supported iOS versions: iOS 14 and newer.
• Supported Android devices: Android 7.0 or newer.

Package Contents

• thermal camera
• protective case
• extension cable
• extension adapter
• USB-C to Lightning adapter
• user manual
