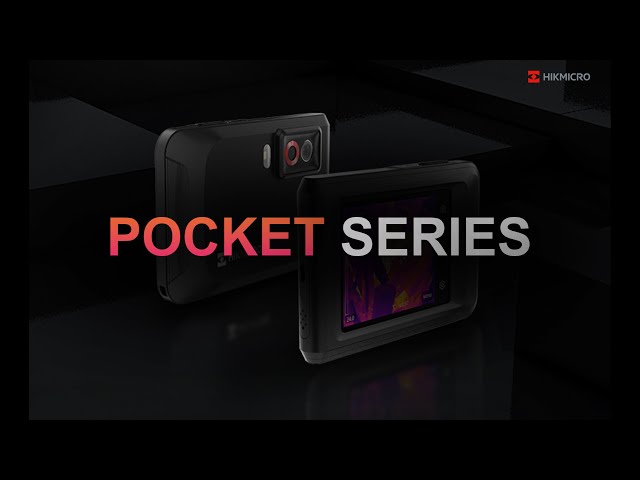

THERMAL CAMERA HIKMICRO POCKET2 256X192, 25HZ, 400C
Product code
6702500
No product description available.
Product details
Technical specifications
Sensor resolution (horizontal)256 px
Sensor resolution (vertical)192 px
Display resolution (vertical)480 px
Display diagonal3.5 inch
With touch screentrue
Thermal imagetrue
Visual imagetrue
Thermal-/visual image (in one image)true
Frames per second (fps)25
Thermal sensitivity at 30 °C0.04 °C
Temperature measuring range-20 ... 400 °C
Relative accuracy of measurement2 %
Wave band8 ... 14 µm
Field of view (FOV) horizontal50 °
Field of view (FOV) vertical37.2 °
Product codes
SAPDAA904
HPACDAA904
PLC6702500
STK6702500
GTIN/EAN6974004641245
Manufacturer part numberHM-TP42-3AQF/W-POCKET2
Vendor material numberHM-TP42-3AQF/W-POCKET2
Basic information
Package measurements (L x W x H)40 x 30 x 20 mm
Package volume0.024 l
Package weight0.218 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandHIKMICRO
VendorINFRADEX OY
