DOWNLIGHT FABIO 75 HV-FD 800Lm 3K 80° BL
Product code
4145618
High-quality LED lights based on HV-FD flicker-free technology are directly connected to 230 V voltage without the need for a ballast. Thanks to the flicker-free technology, the lights do not cause disturbing stroboscopic effects on vision or video recording. HV-FD lights are dimmable with most Triac-type dimmers down to 0.1% light output. Due to the low startup current of less than 100 mA, the number of lights can be determined by the VA rating of the circuit breaker or dimmer.
Features
- service life: at 25°C (L80/B50) 800 lm >70 000 h
- construction: die-cast aluminum housing, protection class II
- color: white (RAL9016) and black (RAL9005)
- optics: 40° and 80°

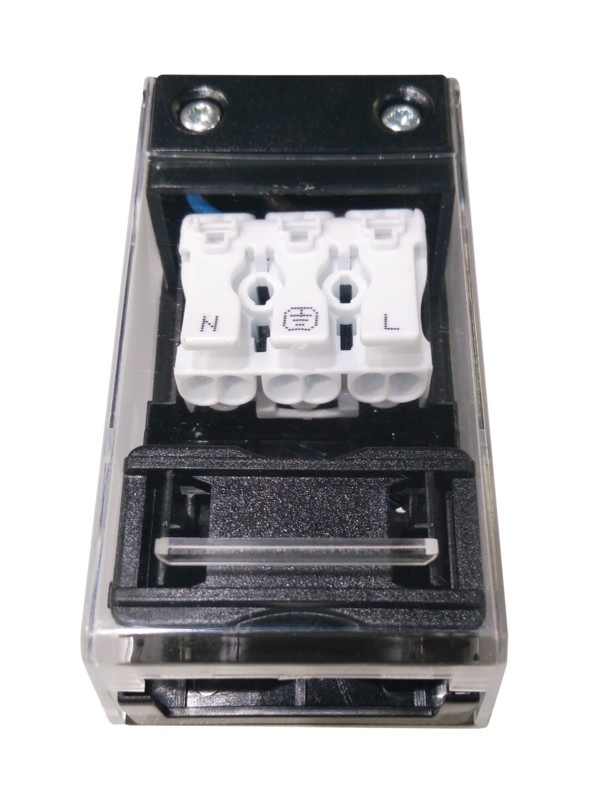

- wiring: chainable large junction box with connecting cable included
- protection rating: fixed models IP44 from below in enclosed ceiling structure, adjustable IP20
- operating temperature: -20 to +45°C
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
With movement sensorno
With presence detectorno
With light sensorno
With light sourceyes
Suitable for number of light sources1
Product codes
SAPCKY382
STK4145618
PLC4145618
GTIN/EAN8716197065389
Manufacturer part number832A03BL5D02
Vendor material number4145618
Basic information
Package measurements (L x W x H)125 x 110 x 65 mm
Package volume0.894 l
Package weight0.28 kg
Base uniteach
Package units1 / 10 / 56 / 1792
Package contents–
UNSPSC39111515
BrandILLUXTRON
VendorHEDTEC OY AB
