DOWNLIGHT FLUXE 75 HV-FD 800Lm 3K 40° WH
Product code
4145600
High-quality HV-FD flicker-free LED lights are directly connected to 230 V voltage without requiring a driver. Thanks to the flicker-free technology, the light source does not cause disturbing stroboscopic effects on vision or video recording.
HV-FD lights are dimmable with most Triac-type dimmers down to 0.1% light output. Due to the low startup current of less than 100 mA for HV-FD lights, the number of lights can be determined by the rating of the circuit breaker or dimmer in VA.
Features
- lifespan: at 25°C (L80/B50) 800lm >70,000h

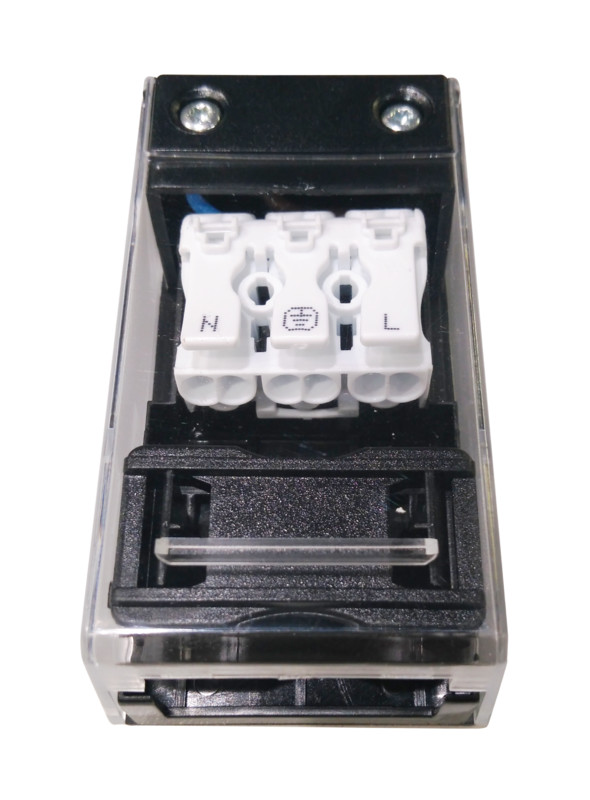

- wiring: chainable large connection box with connecting cable included
- operating temperature: -20 to +45 °C
- light source: fixed LED
- construction: die-cast aluminum housing, protection class II
- enclosure rating: IP20
- color temperature: 3000 K
- luminous flux: 800 lm
- color rendering index: CRI 93
- color: white
- optics: 40°
- recessed mounting
The lights are available in white (RAL9016) and black (RAL9005) with 40° and 80° optics. The enclosure rating for fixed models is IP44 from below in a closed ceiling structure, and IP20 for adjustable models.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPCKY372
STK4145600
PLC4145600
GTIN/EAN8716197065211
Manufacturer part number802A03MW5C02
Vendor material number4145600
Basic information
Package measurements (L x W x H)90 x 90 x 60 mm
Package volume0.486 l
Package weight0.3 kg
Base uniteach
Package units1 / 56 / 1792
Package contents–
UNSPSC39111515
BrandILLUXTRON
VendorHEDTEC OY AB
