DOWNLIGHT FLUXE 75 HV-FD 800Lm 4K 80° BL
Product code
4145607
High-quality HV-FD flicker-free LED lights are directly connected to 230 V voltage. No driver is required. Thanks to the flicker-free technology, the light source does not produce any disturbing stroboscopic effect on vision or video recording. HV-FD lights can be dimmed with most Triac-type dimmers down to 0.1% light output. Due to the low startup current of HV-FD lights, below 100 mA, the number of lights can be determined by the VA rating of the circuit breaker or dimmer.
Features
- lifespan: at 25 °C (L80/B50) 800 lm >70 000 h
- construction: die-cast aluminum housing, protection class II
- color: white (RAL9016) and black (RAL9005)
- optics: 40° and 80°

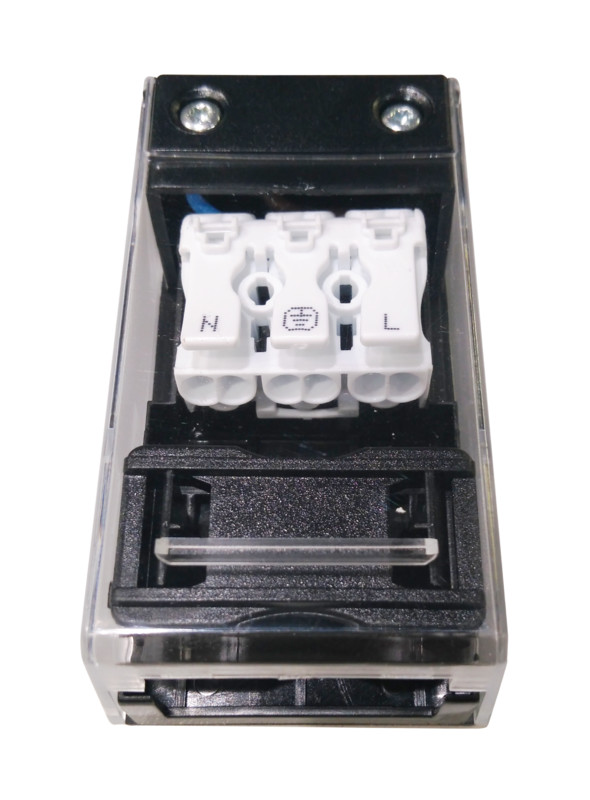

- wiring: chainable large junction box with connecting cable included
- protection rating: fixed models IP44 from below in a closed ceiling structure, adjustable IP20; operating temperature: -20 to +45 °C
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
With movement sensorno
With presence detectorno
With light sensorno
With light sourceyes
Suitable for number of light sources1
Product codes
SAPCKY371
STK4145607
PLC4145607
GTIN/EAN8716197064924
Manufacturer part number802A03BL5F02
Vendor material number4145607
Basic information
Package measurements (L x W x H)125 x 110 x 65 mm
Package volume0.894 l
Package weight0.23 kg
Base uniteach
Package units1 / 10 / 56 / 224
Package contents–
UNSPSC39111515
BrandILLUXTRON
VendorHEDTEC OY AB
