DOWNLIGHT STRADA 75 HV-FD 800Lm 4K 40° BL/SI

Product code
4145653
High-quality HV-FD flicker-free LED lights are directly connected to 230 V voltage. No driver is required. Thanks to the flicker-free technology, the light source does not produce any disturbing stroboscopic effect on vision or video recording. HV-FD lights can be dimmed with most Triac-type dimmers down to 0.1% light output. Due to the low startup current of HV-FD lights, below 100 mA, the number of lights can be determined by the VA rating of the circuit breaker or dimmer. Features
  • lifespan: at 25 °C (L80/B50) 800 lm >70 000 h
  • construction: die-cast aluminum housing, protection class II
  • color: white (RAL9016) and black (RAL9005)
  • optics: 40° and 80°

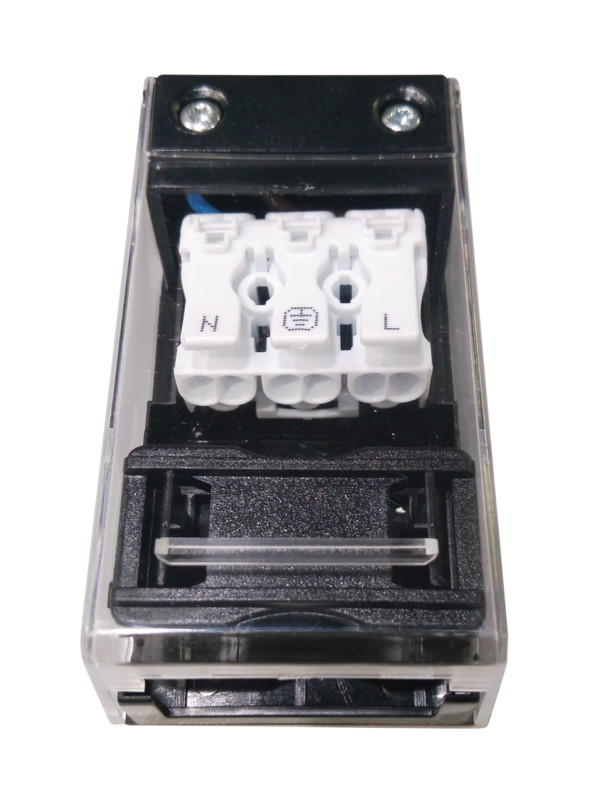

  • wiring: chainable large junction box with connecting cable included
  • protection rating: fixed models IP44 from below in a closed ceiling structure, adjustable IP20; operating temperature: -20 to +45 °C
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
With movement sensorno
With presence detectorno
With light sensorno
With light sourceyes
Suitable for number of light sources1

Product codes

SAPCKY386
STK4145653
PLC4145653
GTIN/EAN8716197066836
Manufacturer part number852A03745E02
Vendor material number4145653

Basic information

Package measurements (L x W x H)81 x 81 x 60 mm
Package volume0.394 l
Package weight0.3 kg
Base uniteach
Package units1 / 56 / 1792
Package contents
UNSPSC39111515
BrandILLUXTRON
VendorHEDTEC OY AB

Documents (4)
