DOWNLIGHT STRADA 90 HV-FD 800Lm 3K 80° BL/GO

Product code
4145688
High-quality HV-FD flicker-free LED lights are directly connected to 230 V voltage without requiring a driver. Thanks to the flicker-free technology, the light does not cause disturbing stroboscopic effects on vision or video recording. HV-FD lights are dimmable with most Triac-type dimmers down to 0.1% light output. Due to the low startup current of less than 100 mA for HV-FD lights, the number of lights can be determined by the rating of the circuit breaker or dimmer in VA. Features
  • service life: at 25°C (L80/B50) 800lm >70,000h

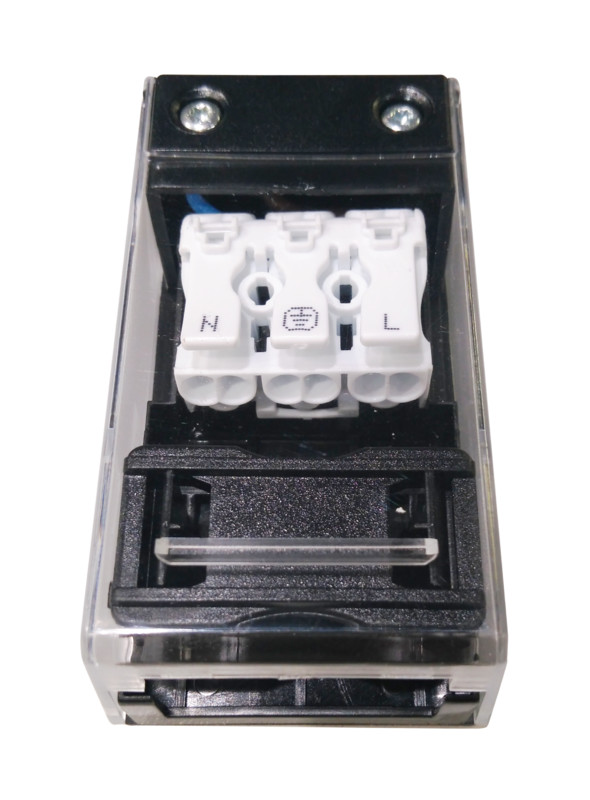

  • wiring: chainable large junction box with connecting cable included
  • operating temperature: -20 to +45 °C
  • light source: fixed LED
  • construction: die-cast aluminum housing, protection class II
  • enclosure rating: IP20
  • color temperature: 3000 K
  • luminous flux: 800 lm
  • color rendering index: CRI 93
  • color: black/gold
  • optics: 80°
  • recessed mounting
  • adjustable

Available in white (RAL9016) and black (RAL9005) with 40° and 80° optics. Fixed models have an IP44 enclosure rating from below in a closed ceiling structure, while adjustable models have IP20.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingno
Suitable for built-in mountingyes
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
With movement sensorno
With presence detectorno
With light sensorno
With light sourceyes
Suitable for number of light sources1

Product codes

SAPCKY446
STK4145688
PLC4145688
GTIN/EAN8716197071144
Manufacturer part number852B03715D02
Vendor material number4145688

Basic information

Package measurements (L x W x H)105 x 105 x 70 mm
Package volume0.772 l
Package weight0.35 kg
Base uniteach
Package units1 / 45 / 540
Package contents
UNSPSC39111515
BrandILLUXTRON
VendorHEDTEC OY AB
