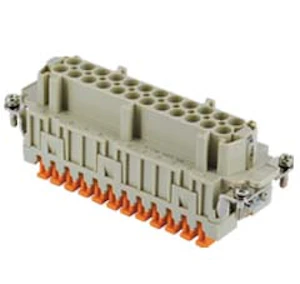

MULTIWIRE CONNECTOR CSHF 24 FEMALE 24-POLE 104.27
Product code
CGA978
ILME is a recognized player in heavy-duty industrial electrical connectors, offering a complete range of innovative solutions for any industrial application. ILME is a technological leader in the industrial automation connectivity sector, exemplified by the world's first tool-free connectors, modular connectors, and patented high-density industrial automation connectors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Contact insert for rectangular connectors (EC000438)
Contact typePin
Number of poles24
Ambient temperature-40 - 125 °C
Rated voltage600 V
Rated surge voltage6 kV
Pollution degree3
Type of electric connectionSpring clamp connection
Connectable conductor cross section solid-core0.14 - 2.5 mm²
Connectable conductor cross section multi-wired0.14 - 2.5 mm²
Material of contact surfaceSilver
Inflammability class of insulation material according to UL94V0
Width104 mm
Depth27 mm
Product codes
SAPCGA978
STKCGA978
PLCCGA978
GTIN/EAN8015747019316
Manufacturer part numberCSHF 24
Vendor material numberCSHF 24
Basic information
Package measurements (L x W x H)110 x 35 x 40 mm
Package volume0.154 l
Package weight0.12 kg
Base uniteach
Package units1 / 5 / 30
Package contents–
UNSPSC39121409
BrandILME
VendorILME NORDIC AB
