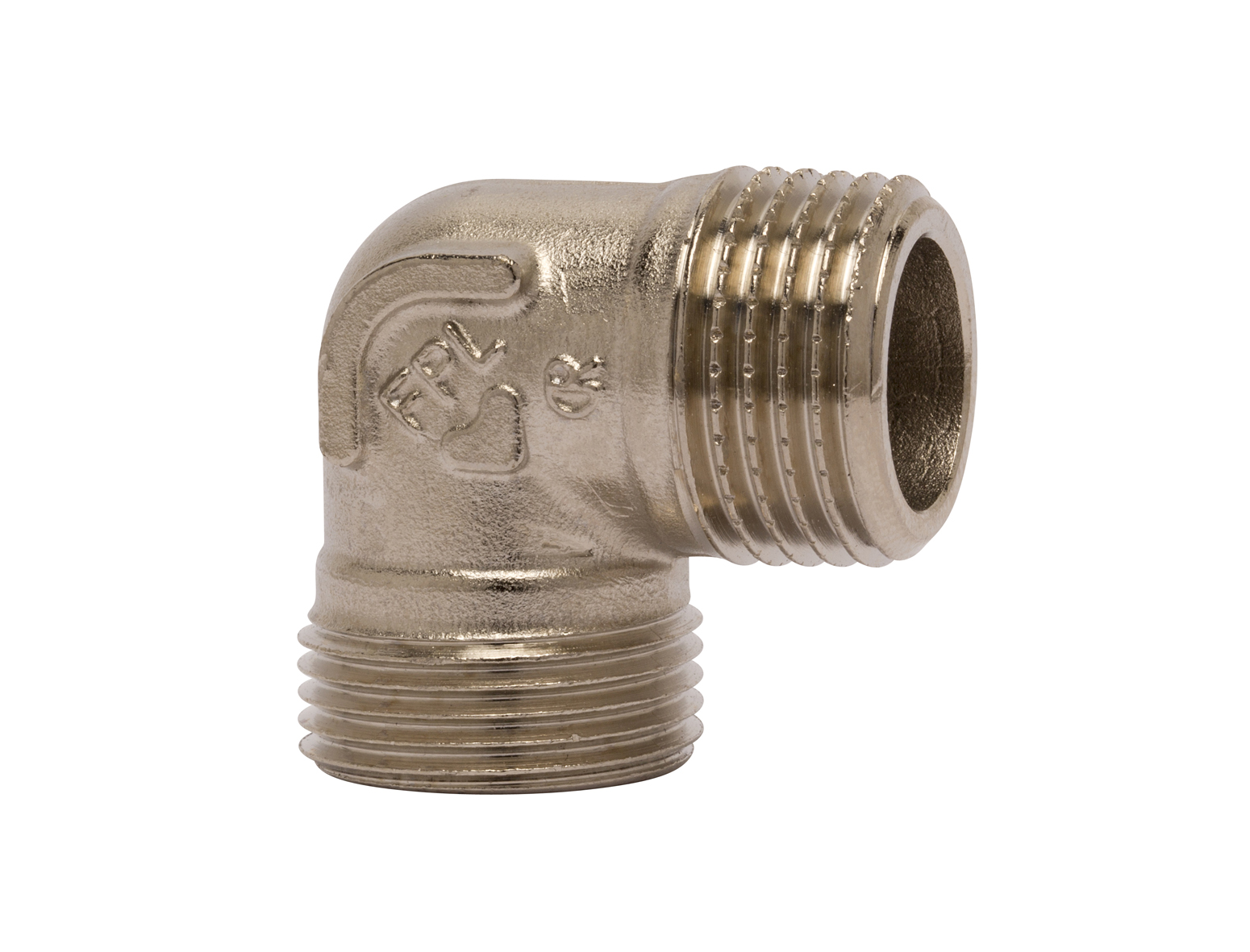

COMPRES ELBOW MT TA 3/8x1/2 TA53354510 CROME
Product code
1553579
Chromium-colored FPL corner frame with external thread and flange. Suitable for use in metal pipe connections in heating, cooling, and domestic water systems with the FPL system. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Other
Surface protection connection 1Chromium-plated
Surface protection connection 2Chromium-plated
ShapeElbow (fitting)
Model1-part
Bend angle90 °
Reducingyes
Eccentricno
System specificyes
Nominal diameter connection 13/8 inch (10)
Connection 1External thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 21/2 inch (15)
Connection 2External thread cylindrical BSPP-G (ISO 228-1)
Length25 mm
Max. operating pressure at 20 °C16 bar
Product codes
SAPGDE048
HPAC1553579
PLC1553579
GTIN/EAN7318793635907
Manufacturer part number53354510
Vendor material number53354510
Basic information
Package measurements (L x W x H)30 x 30 x 20 mm
Package volume0.018 l
Package weight0.04 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC40172801
BrandIMI TA
VendorIMI HYDRONIC ENGINEERING OY
