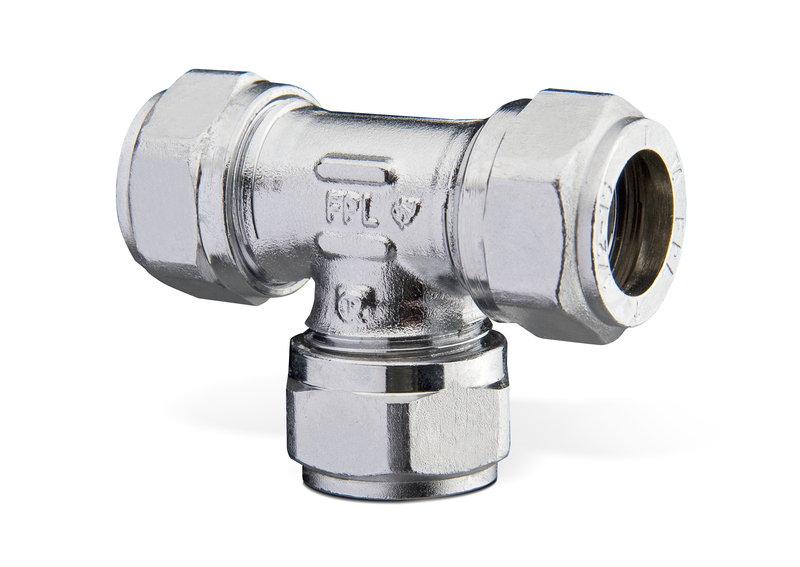

COMPRES. T-BRANCH TA 15 TA53310-515 CHROME
Product code
1553235
Adjustable compression fitting for metal pipes in heating, cooling, and domestic water systems. Up to seven different pipe sizes can be connected to the same fitting body, making installation fast and easy while reducing storage requirements. A zinc-resistant alloy ensures a long service life and reduces the risk of leaks. FPL is available for pipe sizes 6-54 mm. Max. 100°C PN16. A support sleeve must always be used when connecting to non-rigid copper pipes. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Brass
Surface protection connection 1Chromium-plated
Surface protection connection 2Chromium-plated
Surface protection connection 3Chromium-plated
ModelT-piece
Reducingno
System specificyes
Outer pipe diameter connection 115 mm
Connection 1Compression ring
Outer pipe diameter connection 215 mm
Connection 2Compression ring
Outer pipe diameter connection 315 mm
Connection 3Compression ring
With drain valveno
With de-aeratorno
Product codes
SAPAAE298
HPAC1553235
PLC1553235
GTIN/EAN7318793618405
Manufacturer part number53310515
Vendor material number53310515
Basic information
Package measurements (L x W x H)106 x 33 x 33 mm
Package volume0.115 l
Package weight0.137 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC40141720
BrandIMI TA
VendorIMI HYDRONIC ENGINEERING OY
