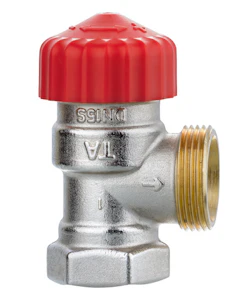

RADIATOR VALVE ANGLE TA 1/2 TRV-3 50822-015 NO UNION
Product code
4034436
TRV-3 Calypso is a pre-settable, adjustable, and robust thermostatic radiator valve. It is primarily designed for radiators in heating systems but is also suitable for use in cooling systems. One valve for all flow rates in the range kv 0.01–0.5. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Radiator valve (EC010136)
Surface protectionNickel-plated
Size of radiator connection1/2 inch (15)
Size of pipe connection1/2 inch (15)
Size of thermostatic adjustment element connectionM30 x 1.5
ShapeRight-angled
ModelTailpiece/internal thread
With bent tailpieceno
With compression setno
Can be presetyes
PresettingWithout valve guard
OperationThermostatic without button
Suitable for single pipe systemno
Suitable for two pipe systemyes
Thermostatically preparedyes
Reverse direction of flowno
Product codes
SAPCCE805
HPAC4034436
PLC4034436
GTIN/EAN4024052948314
Manufacturer part number50822015
Vendor material number50822015
Basic information
Package measurements (L x W x H)65 x 40 x 33 mm
Package volume0.086 l
Package weight0.14 kg
Base uniteach
Package units1 / 20 / 160 / 1280
Package contents–
UNSPSC40141609
BrandIMI TA
VendorIMI HYDRONIC ENGINEERING OY
