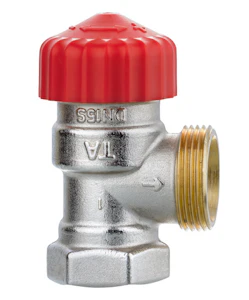

RADIATOR VALVE ANGLE TA 3/8 TRV-3 50822-010 NO UNION
Product code
4034435
TRV-3 Calypso is a pre-settable, adjustable, and robust thermostatic radiator valve. It is primarily designed for radiators in heating systems but is also suitable for use in cooling systems. One valve for all flow rates in the range kv 0.01–0.5. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Radiator valve (EC010136)
Surface protectionNickel-plated
Size of radiator connection3/8 inch (10)
Size of pipe connection3/8 inch (10)
Size of thermostatic adjustment element connectionM30 x 1.5
ShapeRight-angled
ModelTailpiece/internal thread
With bent tailpieceno
With compression setno
Can be presetyes
PresettingWithout valve guard
OperationThermostatic without button
Suitable for single pipe systemno
Suitable for two pipe systemyes
Thermostatically preparedyes
Reverse direction of flowno
Product codes
SAPCCE807
HPAC4034435
PLC4034435
GTIN/EAN4024052948413
Manufacturer part number50822010
Vendor material number50822010
Basic information
Package measurements (L x W x H)65 x 40 x 33 mm
Package volume0.086 l
Package weight0.13 kg
Base uniteach
Package units1 / 20 / 160 / 1280
Package contents–
UNSPSC40141609
BrandIMI TA
VendorIMI HYDRONIC ENGINEERING OY
