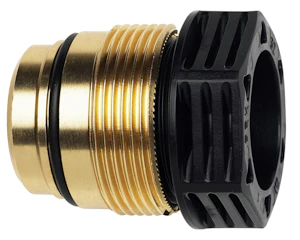

REDUCER PRK TA 1x20mm TA53426-020
Product code
1928320
PRK fitting for plastic pipes
This fitting is suitable for PEL, PEH, PEM, and PELM plastic pipes and is designed for both above-ground and underground installations.
Key features of the fitting- Compression nuts manufactured using injection molding technology are made from UV-stabilized acetal plastic, making them resistant to sunlight and suitable for long-term outdoor use.
- The fitting is detachable and re-installable, facilitating maintenance and servicing of the pipeline.
- STF-type approved
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
ShapeOther
Model1-part
Reducingyes
Nominal diameter connection 11 inch (25)
Connection 1External thread cylindrical BSPP-G (ISO 228-1)
Outer pipe diameter connection 220 mm
Connection 2Insert (push-fitting)
Product codes
SAPAAN907
HPAC1928320
PLC1928320
GTIN/EAN7318792904103
Manufacturer part number53426020
Vendor material number53426020
Basic information
Package measurements (L x W x H)45 x 35 x 35 mm
Package volume0.055 l
Package weight0.07 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC40141720
BrandIMI TA
VendorIMI HYDRONIC ENGINEERING OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1288
GWP, uniteach
Source for GWP dataEPD
