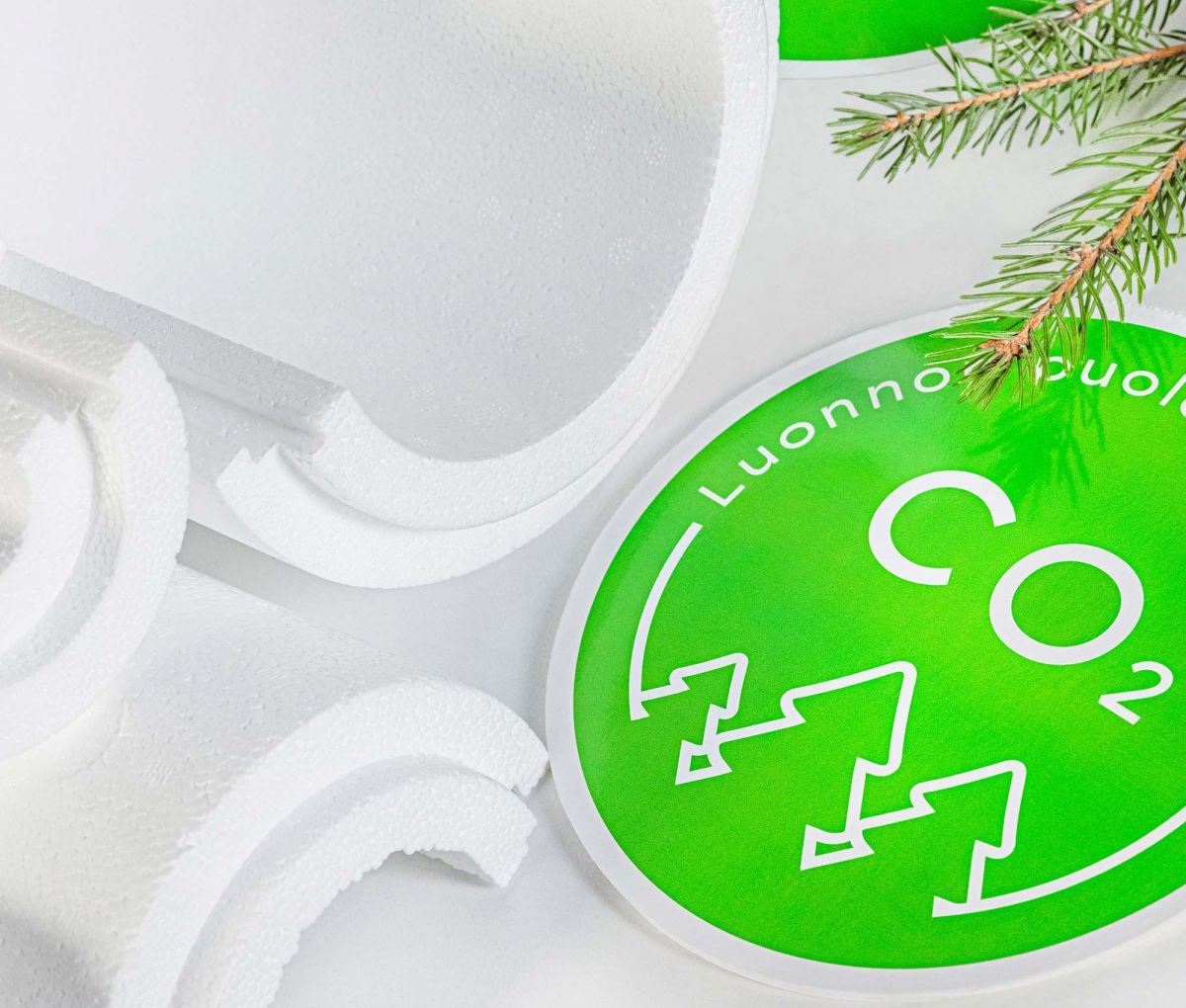

PIPE INSULATION INORA 63X51 12M/PAK
Product code
3140644
Inora Luonto LVI insulation products provide a reliable, easy, and efficient solution for the specific needs of water and drainage pipes, ventilation ducts, and other LVI applications. Standard products have inner diameters of 28–405 mm. Standard insulation thicknesses are 30 and 50 mm.
Installing Inora Luonto LVI insulation is easy and fast. The segments are connected by snapping them together. Finally, the joint is secured by taping or gluing with, for example, polyurethane or water-based adhesive.
Inora Luonto LVI insulation can be coated with, for example, latex, polyurethane, and epoxy resin. The insulation can be cut with a fine-toothed saw, knife, or hot wire.
Inora Luonto LVI insulation is a low-carbon alternative. Traditional fossil oil has been replaced with bio-oil, resulting in significantly lower CO2 emissions for the raw material—up to -80% lower than conventional plastic materials. In addition, Luonto products are 100% recyclable in standard plastic recycling processes. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pipe insulation (EC010258)
Thermal insulationyes
ShapeRound
Model2-part
MaterialExpanded polystyrene (EPS)
Halogen freeyes
Vapor-tightno
Inner diameter63 mm
Thickness51 mm
Density16.8 kg/m³
With closureyes
Self adhesive mountingno
Thermal conductivity0.036 W/(m.K)
ColourWhite
Euro fire class according to EN 13501-1F
Euro class smoke production according to EN 13501-1s3
Product codes
SAPCOA136
HPAC3140644
PLC3140644
GTIN/EAN6418378310135
Manufacturer part number3140644
Vendor material number301013
Basic information
Package measurements (L x W x H)1000 x 165 x 165 mm
Package volume27.225 l
Package weight0.55 kg
Base unitMeter
Package units12
Package contents–
UNSPSC30141505
BrandINORA
VendorINORA OY
The country of origin stated by the supplierFinland
