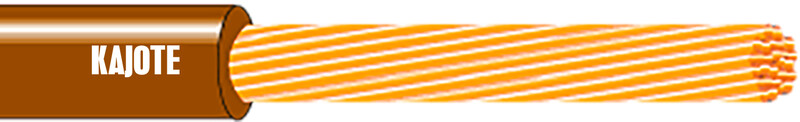

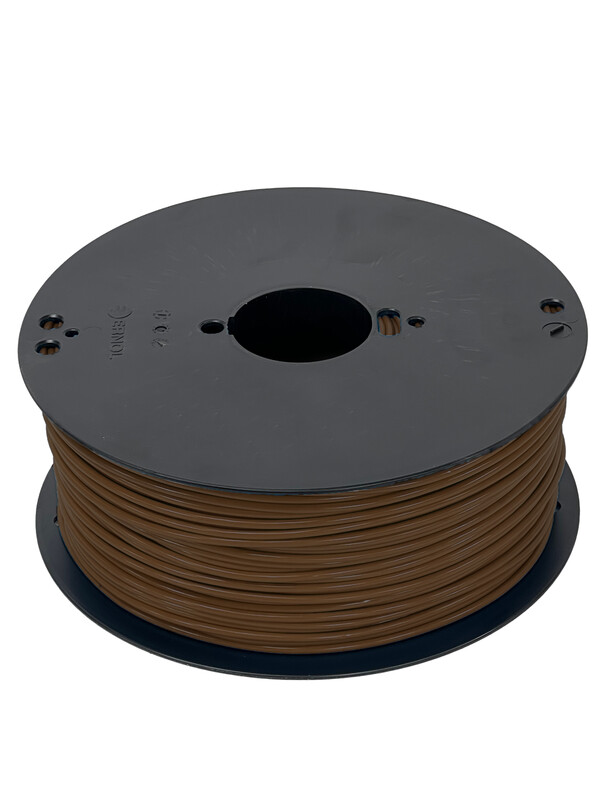

INSTALLATION LEAD MKEM 90C 2.5 BROWN MK200 Eca
Product code
0410826
For fixed installation, primarily pulled into conduit and as internal conductors in devices and panels. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor2.5 mm²
AWG sizeOther
Diameter conductor3.6 mm
Conductor categoryClass 5 = flexible
Conductor resistance at 20 °C7.98 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreBrown
Core identificationColour
Core colourBrown
Product codes
SAPDKB468
STK0410826
PLC0410826
GTIN/EAN6410004108260
Manufacturer part number0410826
Vendor material number0410826
Basic information
Package measurements (L x W x H)1000 x 4 x 4 mm
Package volume0.016 l
Package weight0.031 kg
Base unitMeter
Package units200
Package contents–
UNSPSC26121524
VendorKAJOTE OY
The country of origin stated by the supplierFinland
