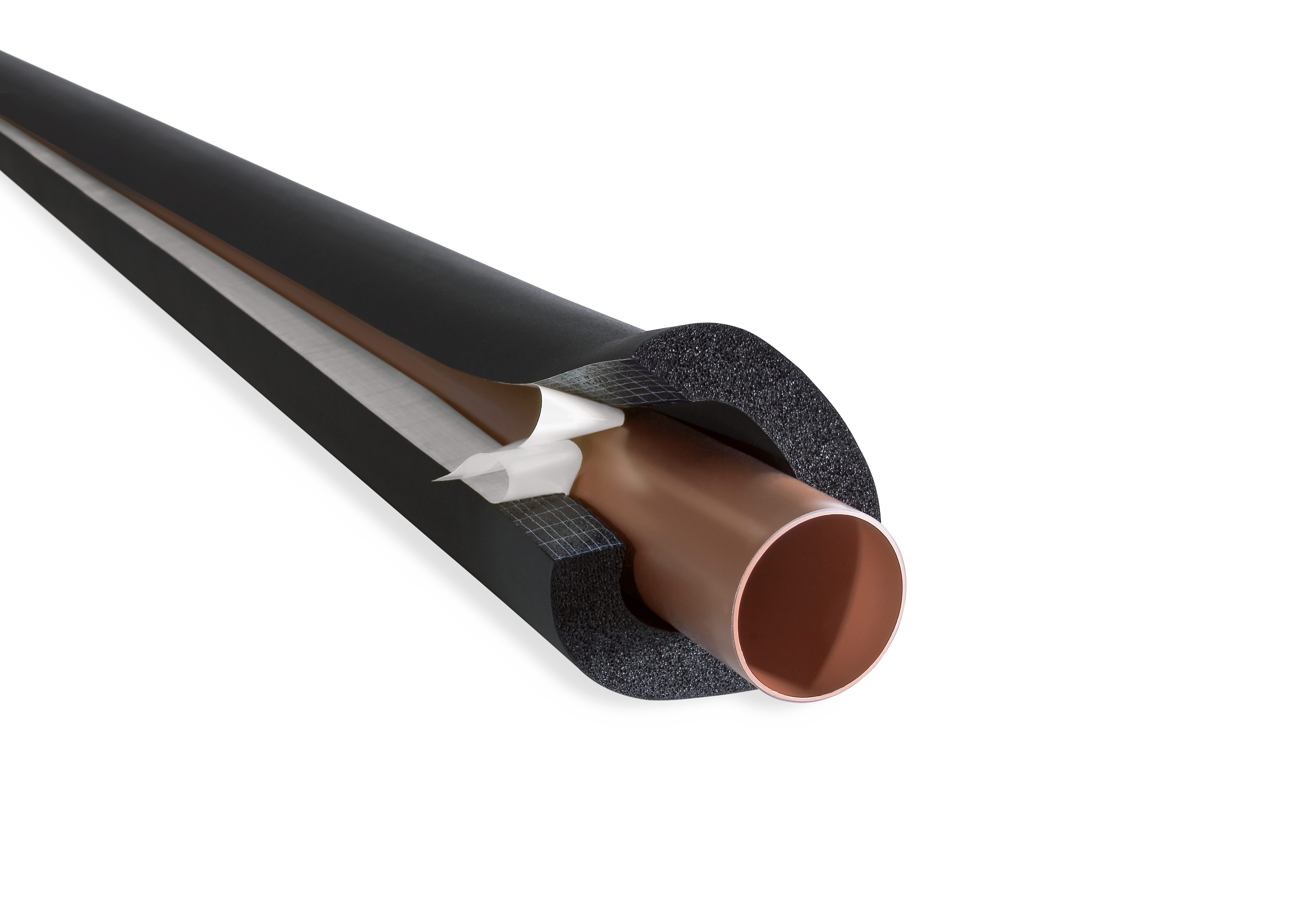

INSULATION TUBE ARMAFLEX AF-CO-25X028-A SELF ADHESIVE

Product code
3128405

AF/ArmaFlex Evo is an extremely flexible, closed-cell insulation material equipped with Microban® antimicrobial protection. The product’s very low thermal conductivity and extremely high water vapor diffusion resistance prevent long-term energy loss and water vapor penetration, while reducing the risk of internal corrosion of the insulation.

The wall thickness of AF/ArmaFlex Evo pipes is standardized at 6, 9, 13, 19, or 25 mm.

Features
  • Material: synthetic rubber-based elastomeric foam
  • Integrated active Microban antimicrobial protection
  • Self-adhesive surfaces coated with acrylic-based adhesive and mesh, with polyethylene film as seam cover
  • Color: black
  • Operating temperature: -50 to 110 °C
  • Protected against UV radiation
  • Fire classification: B(L)-s2, d0, low flammability
  • Water vapor diffusion resistance factor (EN 12086, EN 1346) for tubes 6-25 mm: ? ? 10.000
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Pipe insulation (EC010258)
Thermal insulationyes
Thickness25 mm
ColourBlack

Product codes

SAPDJM076
HPAC3128405
PLC3128405
GTIN/EAN7612207525083
Manufacturer part numberIAFEU25028600
Vendor material numberIAFEU25028600

Basic information

Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume7.663 l
Package weight0.167 kg
Base unitMeter
Package units36
Package contents
UNSPSC30141503
VendorARMACELL GMBH

Documents (5)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.4453
GWP, unitMeter
Source for GWP dataEPD
