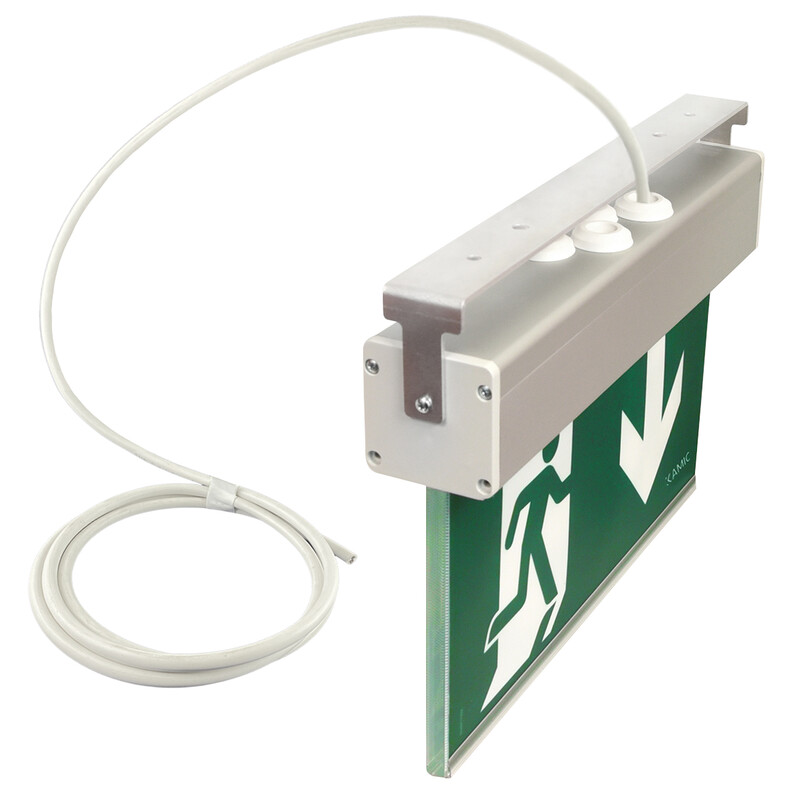

EXIT SIGN LUMINAIRE ALEX 40 CBS

Product code
4126938
Alex 40 CBS is a robust and user-friendly guidance light. Made of aluminum and equipped with a pre-installed 2m connection cable for exceptionally fast installation. Simply mount, connect the cable, and the light is operational without needing to open it. The cable can be easily disconnected within the light if needed. Supplied with a wall/ceiling mounting base. The guidance sign is included in delivery; wheelchair guidance signs are available as an option. IP44, 40m visibility distance, operating temperature -30° to +50°C. • Visibility distance 40m • Voltage: 230V • Backup operation: depends on the safety lighting control unit • Operating temperature: -30° to +50°C • Enclosure rating: IP44 • Protection class I • Pre-installed connection cable length: 2m • Warranty 10 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Emergency luminaire (EC001957)
Mounting methodWall surface mounting/ceiling surface mounting
FunctionEscape route signage
Suitable for labelling typeInsert sheet/plate
Type of indicatorSingle/double-sided
With pictogramno
Suitable for continuous circuityes
With remote switch connectionno
Lamp typeLED exchangeable
With light sourceyes
Lamp holderNone
Housing materialAluminium
Housing colourAluminium
Material coverWithout cover
Voltage typeAC/DC
Nominal voltage230-230 V

Product codes

SAPDJZ366
STK4126938
PLC4126938
GTIN/EAN7331942014804
Manufacturer part number7347945
Vendor material number4126938

Basic information

Package measurements (L x W x H)60 x 481 x 342 mm
Package volume9.87 l
Package weight2.35 kg
Base uniteach
Package units1
Package contents
UNSPSC39111708
BrandKAMIC
VendorKAMIC INSTALLATION AB

Documents (4)

Environment and safety

Manufacturer

NameKamic Installation AB
Postal addressKörkarlsvägen 4 , 65107 Karlstad, Sweden
