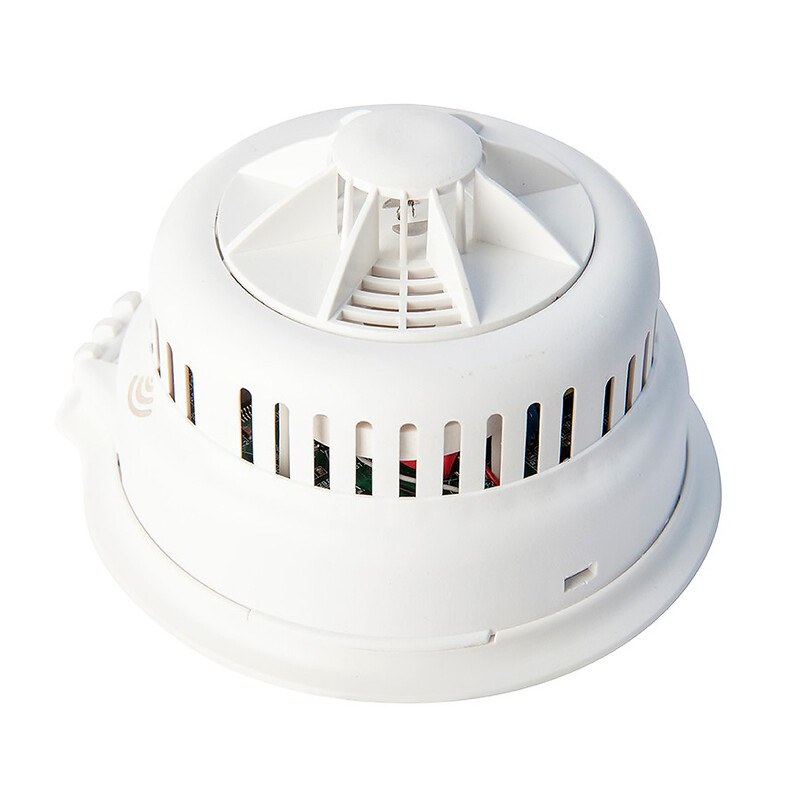

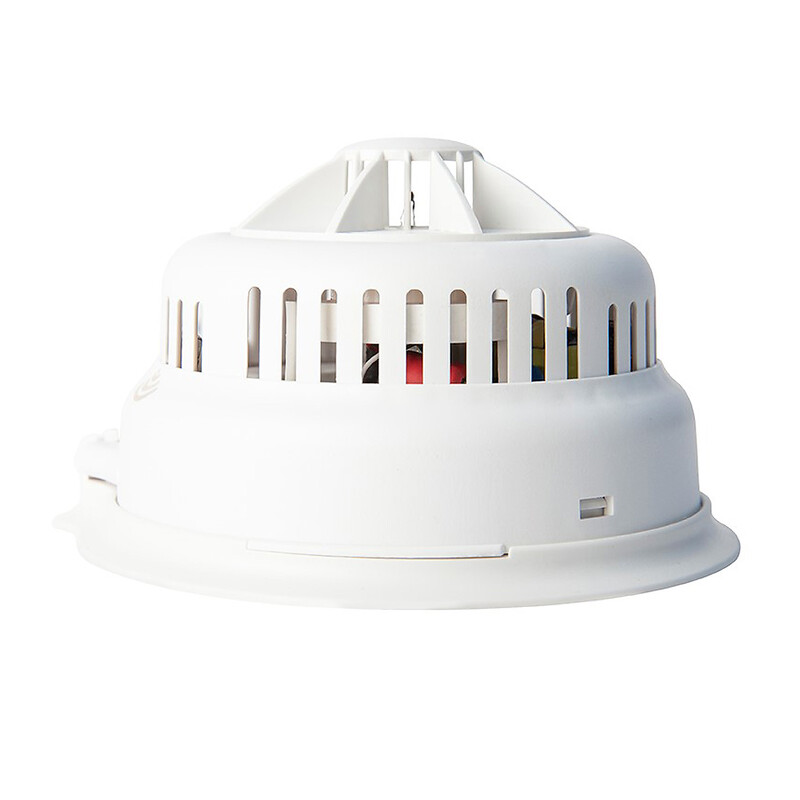

HEAT ALARM KI-11 KI-11H HEAT ALARM 230V
Product code
7124200
Features
- Elegant design and compact size
- 3 x AAA battery
- Response temperature 54°C
- Fast-Fix quick attachment for rapid installation
- Can be interconnected up to 16 units
- KI-11B / KI-11RL smoke detectors can also be connected to the same series
- X-profile optical sensing chamber
- Sound suppression function
- Indicator light
Optional accessories available: KI-RBN relay base with changeover contact and KI-RFM radio module.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Fire detector (EC001763)
Operating principleThermo maximal
Optical notificationyes
Acoustic notificationyes
Response temperature57 °C
Smoke switcherno
With orientation lightingno
Type of test-/pause buttonCombination
Mounting methodSurface mounting
Self-adhesiveno
Separate socket neededno
Suitable for duct mountingno
Cable entryBottom and side
Standaloneno
Networkable via cableyes
Networkable via radiografic (standard)no
Product codes
SAPDAH909
STK7124200
PLC7124200
GTIN/EAN7316779441627
Manufacturer part number94.4172
Vendor material number7124200
Basic information
Package measurements (L x W x H)75 x 115 x 115 mm
Package volume0.992 l
Package weight0.25 kg
Base uniteach
Package units1 / 10 / 40
Package contents–
UNSPSC46191505
BrandKAMIC
VendorKAMIC INSTALLATION AB
