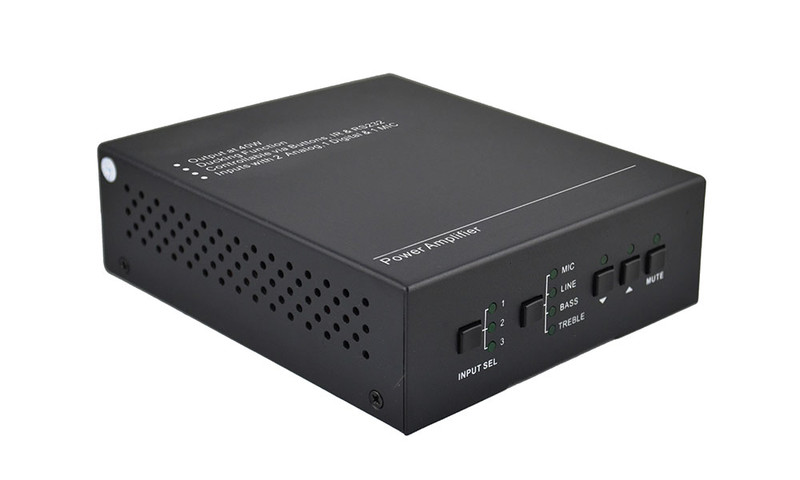

MIXER 3-IN MIXER AMP 40W 70/100V

Product code
7914152
KanexPro AP3DBL is a 3-input 40-watt amplifier that also supports 70V or 100V.

It features RCA, 3.5mm, and TOSLINK inputs. The amplifier supports microphone mixing and EQ control. The AP3DBL's RS-232 control and 70V/100V output make it an excellent choice for various applications such as sports bars, meeting rooms, and public address systems.

Features:
  • Fast input switching, 3 audio inputs (1 digital, 2 analog)
  • One 3-level MIC input with mixing functionality
  • 40-watt amplifier output with 70V or 100V voltage
  • Adjustable volume with bass and treble control
  • Power lock feature
  • Control via front panel, RS232, and IR
  • Supports Dual-mono output
  • Built-in microphone mixer (individually controllable)
  • Line audio output with adjustable volume
  • MIC input supports 48V phantom power
  • Ducking functionality
  • Supports balanced/unbalanced signal
  • Convection-cooled, anti-static enclosure design
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Audio mixer (EC000667)
Number of inputs3
Number of outputs2
Connection type loudspeaker busno
Connecting type Scartno
Connecting type RCAno
Connecting type clampyes
Connecting type screw clampyes
Connecting type DIN 5-poleno
ModelLoudspeaker mixing panel
Width96 mm
Height38 mm
Depth88 mm
Nominal voltage24 V
Number of loudspeaker groups1
Number of connectable devices3

Product codes

SAPDAG767
STK7914152
PLC7914152
GTIN/EAN814556016077
Manufacturer part numberAP3DBL
Vendor material numberAP3DBL

Basic information

Package measurements (L x W x H)307 x 212 x 90 mm
Package volume5.858 l
Package weight1.68 kg
Base uniteach
Package units1
Package contents
UNSPSC32101514
BrandKANEXPRO
VendorFINNSAT OY

Documents (5)
