KATHREIN
BROADBAND AMPLIFIER 5-204/258-1218MHZ, D3.1
Product code
7542972
Downstream Amplifier for DOCSIS 3.1 Cable TV Networks.

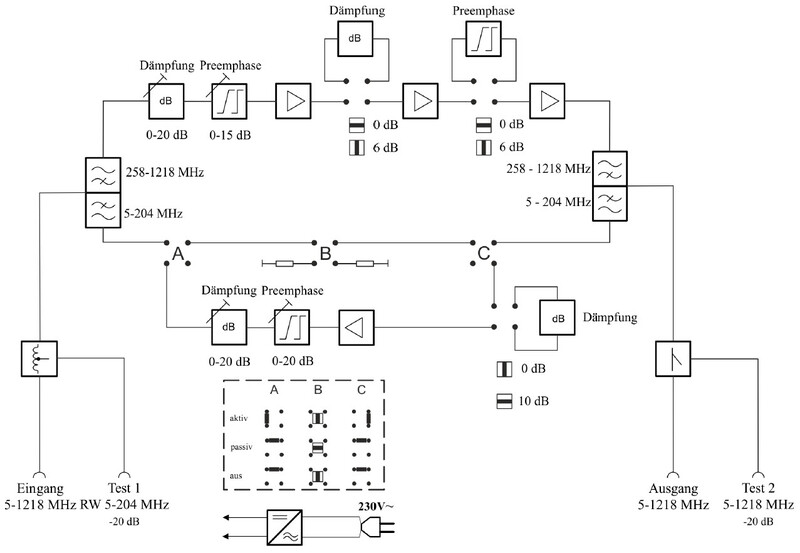

Downstream 258-1218 MHz, gain selectable between amplifier stages with 0/6 dB attenuator: 34/40 dB.
Maximum output level CTB/CSO Genelec 42 ch. is 114 dBuV with 6 dB interstage tilt enabled.
Downstream 258-1218 MHz: adjustable 20 dB input attenuator and 15 dB tilt, plus 6 dB fixed interstage tilt.
Upstream 5-204 MHz: active 28 dB, passive -1 dB or OFF (< -30 dB). Adjustable 20 dB attenuator and tilt, plus 10 dB fixed attenuator.
F-connectors, -20 dB test points on input and output, locally powered 230 VAC, 1 output. Operating temperature range -20 ... +55 °C. This product description is an automated translation of the original Finnish description.
Downstream 258-1218 MHz, gain selectable between amplifier stages with 0/6 dB attenuator: 34/40 dB.
Maximum output level CTB/CSO Genelec 42 ch. is 114 dBuV with 6 dB interstage tilt enabled.
Downstream 258-1218 MHz: adjustable 20 dB input attenuator and 15 dB tilt, plus 6 dB fixed interstage tilt.
Upstream 5-204 MHz: active 28 dB, passive -1 dB or OFF (< -30 dB). Adjustable 20 dB attenuator and tilt, plus 10 dB fixed attenuator.
F-connectors, -20 dB test points on input and output, locally powered 230 VAC, 1 output. Operating temperature range -20 ... +55 °C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CATV-amplifier (EC000423)
Connection typeF-Connector
Number of outputs1
Number of inputs1
ModelDistribution amplifier
Power adaptorBuilt-in (integrated)
Remote feedableno
Equalizeryes
Level adjusteryes
Return path channelActive/passive/switchable
Return path channel boost28 dB
Gain UHF40 dB
Product codes
SAPDCC300
STK7542972
PLC7542972
GTIN/EAN6430078841504
Manufacturer part numberVOS 43/RA 1G2
Vendor material number7542972
Basic information
Package measurements (L x W x H)200 x 145 x 75 mm
Package volume2.175 l
Package weight1.28 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221702
BrandKATHREIN
VendorLAATUANTENNI OY
