BROADBAND AMPLIFIER 5-65/85-1006MHZ, D3.0, REMOTE

Power Amplifier Docsis 3.0 for KTV networks.

The VOS 139/RA 2.0 amplifier can also be used solely in the forward direction network 47-1006 MHz.

Forward direction frequency response only 47-1006 MHz. Forward-return direction frequency response 5-65 / 85-1006 MHz.

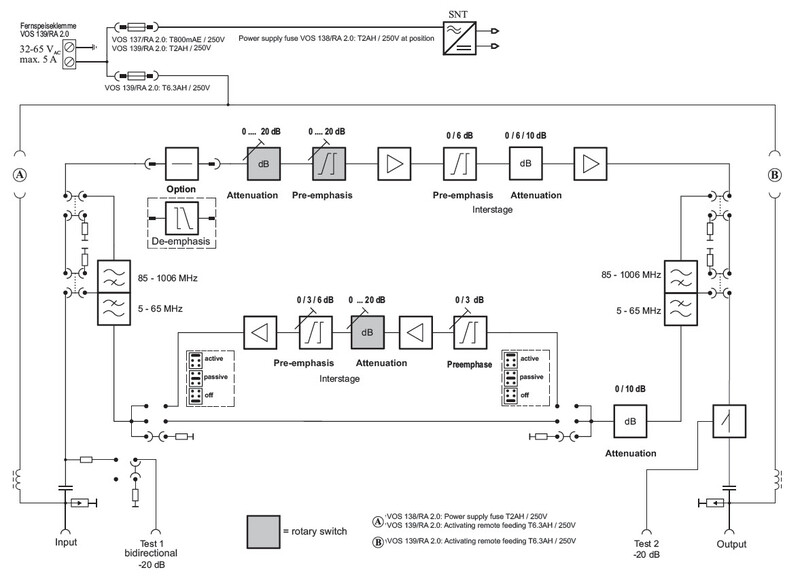

Gain selectable at 30/34/40 dB via attenuator between amplifier stages 0/6/10 dB, Interstage tilt 0/6 dB. Output level CTB/CSO 113/116 dBuV.

Forward direction input attenuator and tilt adjustment via rotary switch 0...20 dB in 1 dB steps.

Return direction selectable at 5-65 MHz, active 20/30 dB, passive -2 dB or OFF. Attenuation via rotary switch 0...20 dB in 1 dB steps. 10 dB fixed attenuator.

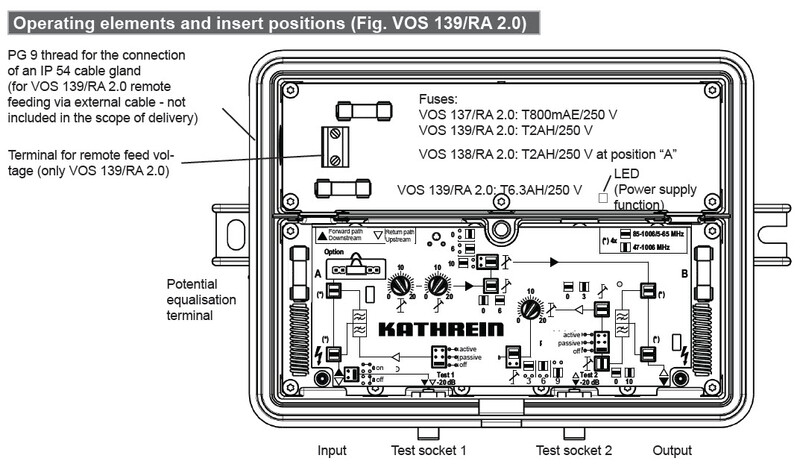

PG11 threads on input and output, -20 dB test points on input and output with F-connectors, remote feed 32-65 VAC, 1 output. Enclosure class IP54 and operating temperature range -20 ... +55 C

Power supply to the amplifier can be fed through the input (IN) and output (OUT) connectors. Similarly, voltage pass-through from IN connector to OUT connector is possible. Maximum pass-through current is 5 A. This product description is an automated translation of the original Finnish description.
