BROADBAND AMPLIFIER 5-65/85-1006MHZ, D3.0
Product code
7542962
Power Amplifier Docsis 3.0 for KTV networks.
The VOS 137/RA 2.0 amplifier can also be used solely in the forward network at 47-1006 MHz.
Forward frequency response only 47-1006 MHz. Forward-return frequency response 5-65 / 85-1006 MHz.

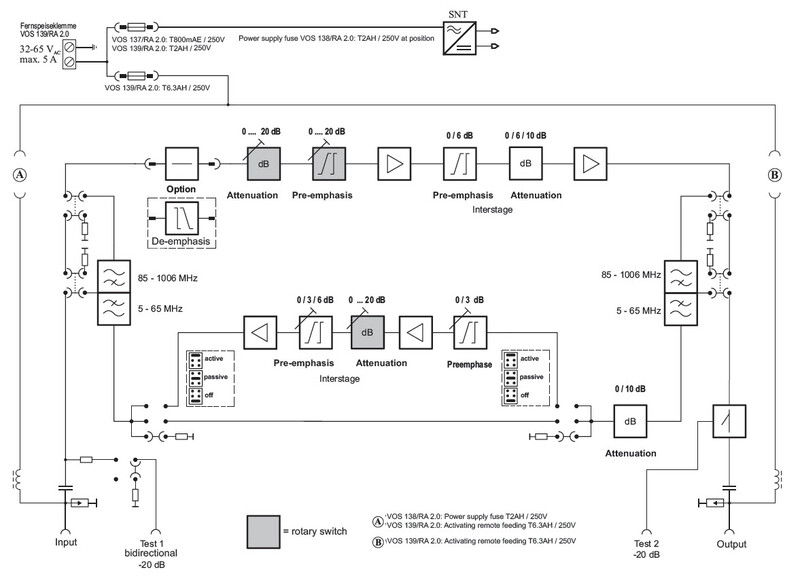

Gain selectable at 30/34/40 dB using attenuators between amplifier stages of 0/6/10 dB, Interstage tilt 0/6 dB. Output level CTB/CSO 113/116 dBuV.

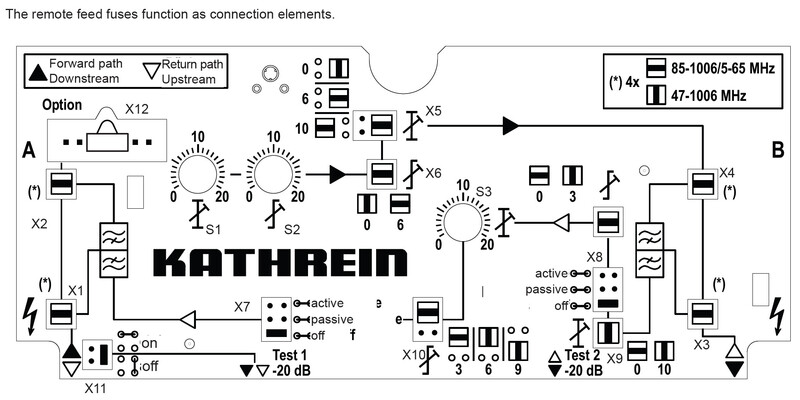

Forward input attenuator and tilt adjustment via rotary switch 0...20 dB in 1 dB steps.
Return direction selectable at 5-65 MHz, active 20/30 dB, passive -2 dB or OFF. Attenuation via rotary switch 0...20 dB in 1 dB steps. 10 dB fixed attenuator.
F-connectors, -20 dB test points on input and output, locally powered 230 VAC, 1 output. Enclosure class IP54 and operating temperature range -20 ... +55 °C. This product description is an automated translation of the original Finnish description.
The VOS 137/RA 2.0 amplifier can also be used solely in the forward network at 47-1006 MHz.
Forward frequency response only 47-1006 MHz. Forward-return frequency response 5-65 / 85-1006 MHz.
Gain selectable at 30/34/40 dB using attenuators between amplifier stages of 0/6/10 dB, Interstage tilt 0/6 dB. Output level CTB/CSO 113/116 dBuV.
Forward input attenuator and tilt adjustment via rotary switch 0...20 dB in 1 dB steps.
Return direction selectable at 5-65 MHz, active 20/30 dB, passive -2 dB or OFF. Attenuation via rotary switch 0...20 dB in 1 dB steps. 10 dB fixed attenuator.
F-connectors, -20 dB test points on input and output, locally powered 230 VAC, 1 output. Enclosure class IP54 and operating temperature range -20 ... +55 °C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CATV-amplifier (EC000423)
Connection typeF-Connector
Number of outputs1
Number of inputs1
ModelDistribution amplifier
Power adaptorBuilt-in (integrated)
Remote feedableno
Equalizeryes
Level adjusteryes
Return path channelActive/passive/switchable
Frequency backward channel5 - 65 MHz
Return path channel boost30 dB
Gain UHF40 dB
Product codes
SAPDCC298
STK7542962
PLC7542962
GTIN/EAN6430078841481
Manufacturer part numberVOS 137/RA 2.0
Vendor material number7542962
Basic information
Package measurements (L x W x H)230 x 165 x 90 mm
Package volume3.416 l
Package weight1.46 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221702
BrandKATHREIN
VendorLAATUANTENNI OY
